Select your vehicle
Vehicle Info Required to Guarantee FitAdd Vehicle

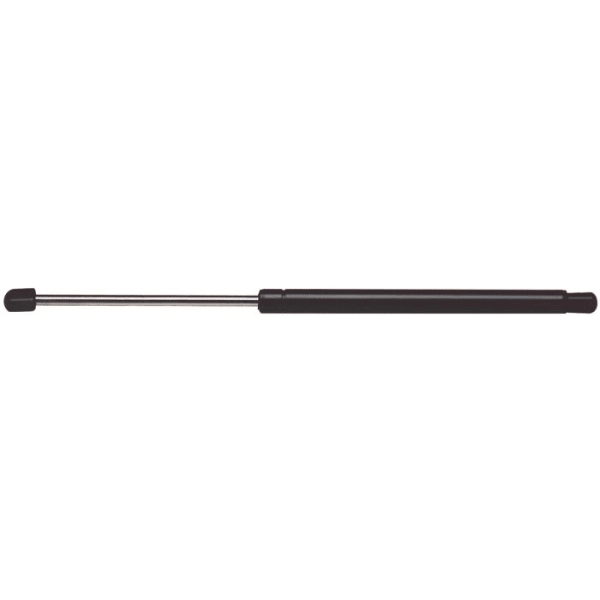

Strong Arm® 6246 Sport Utility Driver or Passenger Side Liftgate Lift Support, Sold individually
Tap image and pinch to zoom.
$34.49
Manufacturer #6246
Vehicle Info Required to Guarantee FitAdd Vehicle
Qty:
1
Highlights
Part:
Brand:
Location:
Driver Or Passenger Side
Notes:
6 in. Stroke Length; 169 lb Maximum Force; 22 mm Cylinder OD; 10 mm Inner Shaft Dia.; 10 mm Nylon Ball Socket End 1 Type; 16 Deg. Nylon Angled Ball Socket End 2 Type; Rubber Teflon Material; Steel Outer Cylinder Material; No Internal Rebound Spring
Type:
Liftgate
Quantity Sold:
Sold individually
Recommended Use:
OE Replacement
Compressed Length:
17.25 in. Compressed Length
Extended Length:
23.25 in. Extended Length
Product Fit:
Direct Fit
Replaces OE Number:
6246, 901886, 8196832, 8A8Z74406A10B, 8A8Z74406A11B, C6246, C96246, SG204067
Interchange Part Number:
JRF61290002, 6246, 901886, 8196832, 8A8Z74406A10B, 8A8Z74406A11B, C6246, C96246, SG204067
Warranty:
1-year Strong Arm limited warranty
Prop 65 Warning:
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Vehicle Fitment Information
Vehicle Name
Submodel
Engine
Fitment Information
2009-2016 Ford Flex
Limited
6 Cyl 3.5L
Sport Utility, For Liftgate, With Power Lift Gate
2009-2016 Ford Flex
SE
6 Cyl 3.5L
Sport Utility, For Liftgate, With Power Lift Gate
2009-2016 Ford Flex
SEL
6 Cyl 3.5L
Sport Utility, For Liftgate, With Power Lift Gate
2011-2012 Ford Flex
Titanium
6 Cyl 3.5L
Sport Utility, For Liftgate, With Power Lift Gate
Product Information
STRONG ARM LIFT SUPPORT
The StrongArm lift support is made from a chromium-plated hardened steel rod and glossy finish heavy gauge steel body. It is designed with self-cleaning orifice that keeps the piston area free of contaminants, reduces clogging and prevents lock up.
- Features a sealing system that uses a Triple-Lobe rubber seal and rubber O-ring piston seal to withstand high pressure, vibration, side-loading and misalignment
- Nitrogen gas charge up to 2,500 PSI does not affect any of the internal components
- Patented temperature compensation module valve allows consistent operation even in extreme weather conditions
- Made from top quality steel components
- Gas-charged lift support
Engineered and designed in the USA by AVM Industries Inc., StrongArm is a top supplier of high-quality gas-charged lift supports in the automotive and aftermarket industries.
