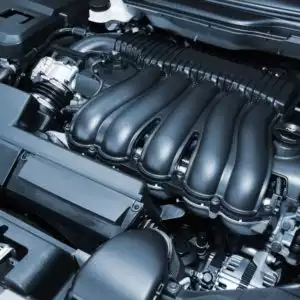

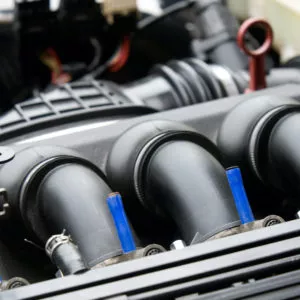

An intake manifold runner distributes air to ports in the cylinder head, helping improve the engine airflow process. In most cases, a runner can be tuned by adjusting its length and shape. Long runners build low RPM torque, while short runners provide maximum high RPM power.
For the entire intake manifold runner control system to work as it should, the butterfly valves inside the intake manifold must open and close at the right time. If the powertrain control module (PCM) detects a problem with one of the runners’ control circuits, it will log a P2009 code.
What Does the P2009 Code Mean?
Diagnostic trouble code (DTC) P2009 stands for “Intake Manifold Runner Control Circuit Low Bank 1.”
The intake manifold runner control system has butterfly valves that open once prompted by the PCM. This process lets air into the combustion chamber and mixes it with fuel.

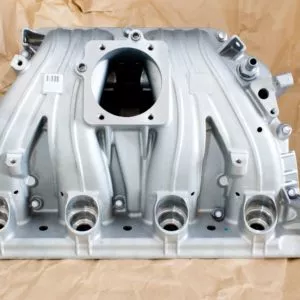

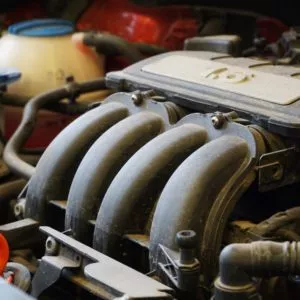

Runners are typically found in a variable intake manifold. This type of intake manifold uses a technology that varies the length of the runners’ airflow passages, which in turn fine-tunes engine performance.
The intake manifold runner control system has an actuator that controls the butterfly valves. These valves usually have access to short and long airflow paths. Unfortunately, these valves in the control system are a common source of engine performance issues, which can cause the PCM to log a P2009 code.
Note: The definition of code P2009 might be different depending on the vehicle manufacturer. Consult the appropriate repair manual or repair database for the exact code definition.
What are the Common Causes of the P2009 Code?
- Restricted vacuum lines
- PCM failure
- Intake manifold runner control actuator failure
- Wiring issues (e.g., corroded connector, open or shorted wiring in the actuator, etc.)
- Faulty manifold absolute pressure (MAP) sensor
What are the Common Symptoms of the P2009 Code?
- Engine surge
- Hesitation upon acceleration
- Increased fuel consumption
- Poor engine performance at low RPMs
- Rich or lean exhaust

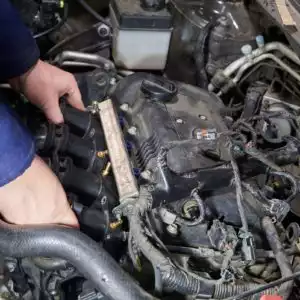

How to Diagnose the P2009 Code

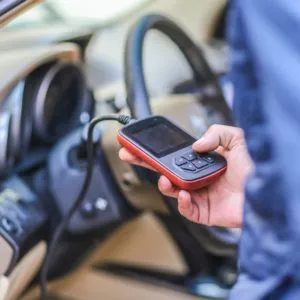

A P2009 is a generic trouble code that can be logged in vehicles with an OBD-II system. However, keep in mind that the steps for diagnosis and repair can vary, depending on vehicle specifications.
If you’re not familiar with the process of diagnosing trouble codes, it’s best to leave the job to the pros. But if you think you have the technical knowledge to diagnose your vehicle, then you can go ahead and do it yourself. To help you out, here is a video that shows you what the process usually involves.

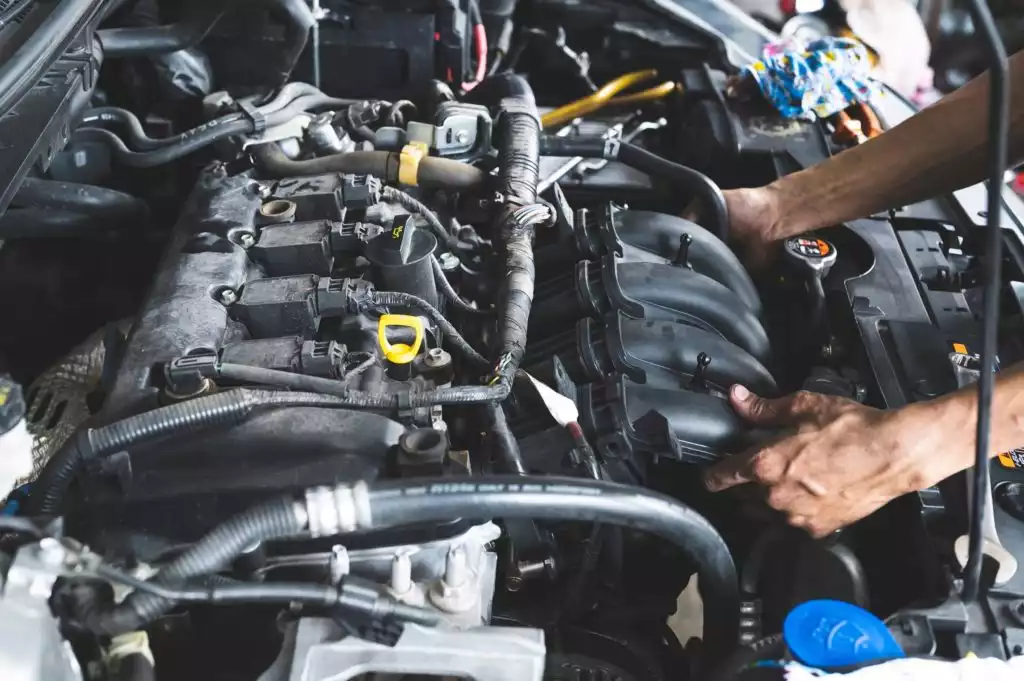

How to Fix the P2009 Code
Attempting to fix a P2009 code can be tricky if you don’t have the right tools and know-how. To ensure that the problem is resolved properly, it’s a good idea to bring your vehicle to the nearest repair shop and have a trained professional perform the necessary repairs.
But if you think you can do it on your own, make sure to have the right information before proceeding. Guides like those from Chilton or an ALLDATA subscription contain vehicle-specific repair information, which will come in handy when resolving trouble codes like P2009.
