P0783 Code: 3-4 Shift

The automatic transmission relies on shift solenoids to activate the hydraulic-powered parts that change between gears. These solenoids take orders from the transmission control module (TCM) or the engine control module (ECM)/powertrain control module (PCM). Depending on its design, the control circuit for these solenoids uses either the power control approach or the ground side control approach.

If the PCM detects that the engine revolutions per minute (RPM) did not drop when shifting from 3-4 gears, its diagnostics will log a P0783 code.

What Does the P0783 Code Mean?

The diagnostic trouble code (DTC) P0783 indicates “3-4 Shift.” It only applies to vehicles with automatic transmissions.

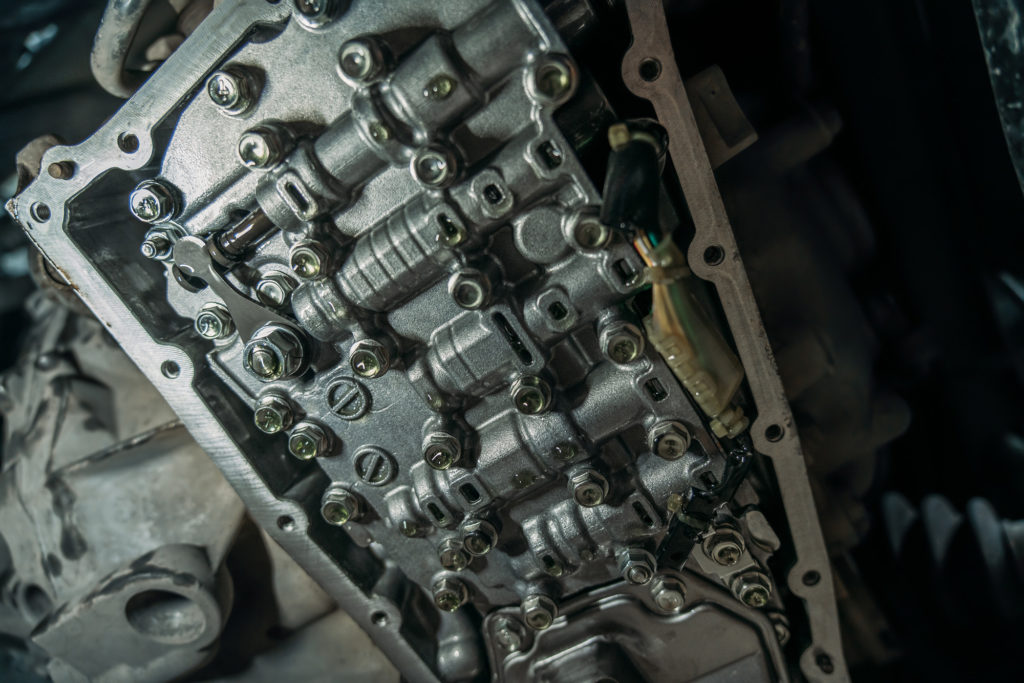

In an automatic transmission, the 3-4 shift solenoid actuates the hydraulic circuits that carry transmission fluid to the gear bands or clutches that change gears. The pressure applied by the flow of hydraulic fluid activates the clutch connected to a specific gear. This allows the transmission to change gears on demand.

The 3-4 shift solenoid is either an on/off type or a duty cycle-controlled type. It regularly gets diagnosed by the PCM or TCM to see if it is running correctly, even when the shift solenoid is switched off.

The PCM or TCM looks for an inductive kick, a very fast voltage change that happens across the inductor when something interrupts the current flow. This inductive kick is too fast to trigger the 3-4 shift solenoid to change gears.

Activating and deactivating the shift solenoid causes its magnetic field to collapse. It will generate a slightly higher voltage.

The PCM regularly checks if the transmission is completing the 3-4 upshift properly. If the computer doesn’t get the right response, it will set the generic transmission code P0783.

Note: The definition of code P0783 can differ according to the vehicle manufacturer. Check the appropriate repair manual or repair database for the exact code definition.

What are the Common Causes of a Code P0783?

• Low transmission fluid level
• Faulty transmission shift solenoid
• Bad transmission valve body failure
• Wiring issue
• Internal transmission failure
• Bad TCM

What are the Common Symptoms of a Code P0783?

• Illuminated check engine light
• Transmission fails to shift properly

How to Diagnose the P0783 Code

The P0783 code is a generic transmission code that various makes and models can log. However, this does not mean that there is a one-size-fits-all solution to identify its underlying problem.

If you’re not confident about conducting diagnostic tests on your vehicle, it’s a good idea to bring it to a professional mechanic. Otherwise, you can go ahead and diagnose the issue yourself.

How to Fix the P0783 Code

Attempting to fix a P0783 code can become a challenging task if you don’t have the right tools and know-how to test the transmission. In most cases, it’s best to leave the job to professionals.
For DIYers with advanced auto repair experience and know-how, it will be helpful to rely on the appropriate repair manual or to refer to an online repair database.
