Where Is the Fuel Filter Located?

Q: Where is the Fuel Filter Typically Located?

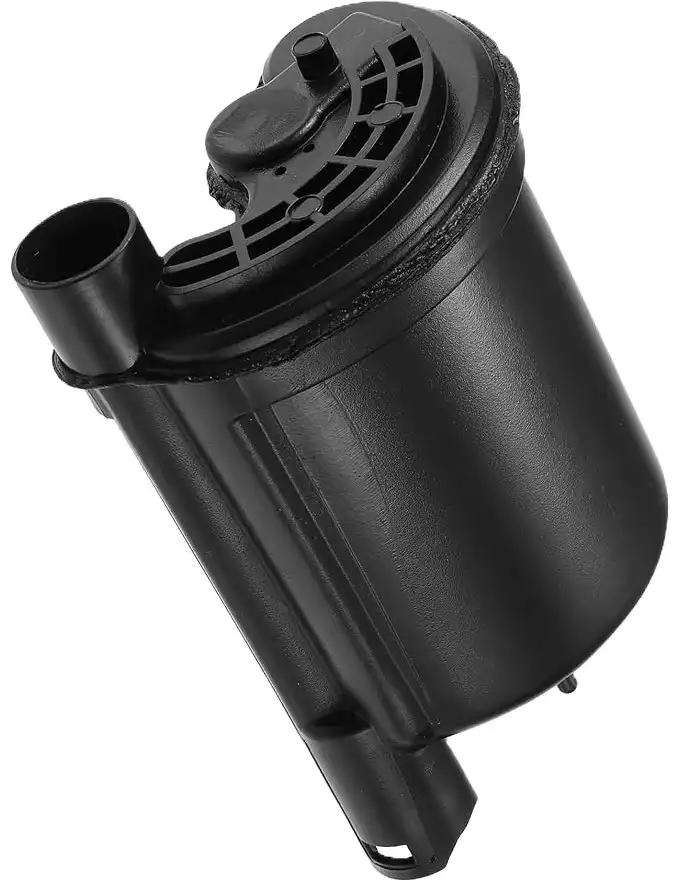

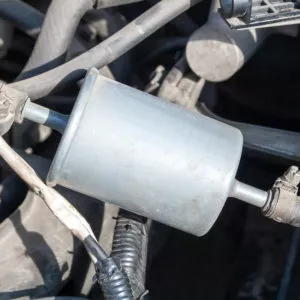

A: The fuel filter is typically found somewhere between a vehicle’s engine and fuel tank in the supply line. But on many vehicles, it’s located inside the fuel tank and is part of the fuel pump assembly or mounted right on top of the fuel pump assembly as an integral part.

The exact location of the fuel filter depends on the vehicle’s make and model. For example, 1995-2002 Honda Accord models have the fuel filter near the brake master cylinder on the back of the engine.

Fuel filters are designed to catch stray particulate matter in fuel before they reach the engine. This helps keep the engine performing optimally.

Pro Tips are nuggets of information direct from ASE-certified automobile technicians working with CarParts.com, which may include unique, personal insights based on their years of experience working in the automotive industry. These can help you make more informed decisions about your car.

Pro Tip: You might need wrenches, a simple pocket screwdriver to remove plastic clips, or you may need special tools.

Tips on How to Access the Fuel Filter

Before you access your fuel filter, you need to find out where it is and whether you need special tools that you don’t have on hand. Many fuel filters require special tools to disconnect the filter.

CAUTION: Always wear eye protection and do not use incandescent drop lights. Don’t smoke or have sparks or open flames nearby.

Also, it’s important to first relieve the pressure in the fuel system. You can usually do this by allowing your engine to run for a minute or so without the fuel pump functioning. Find and remove the relay, then start the vehicle with the relay removed and let it exhaust the fuel pressure.

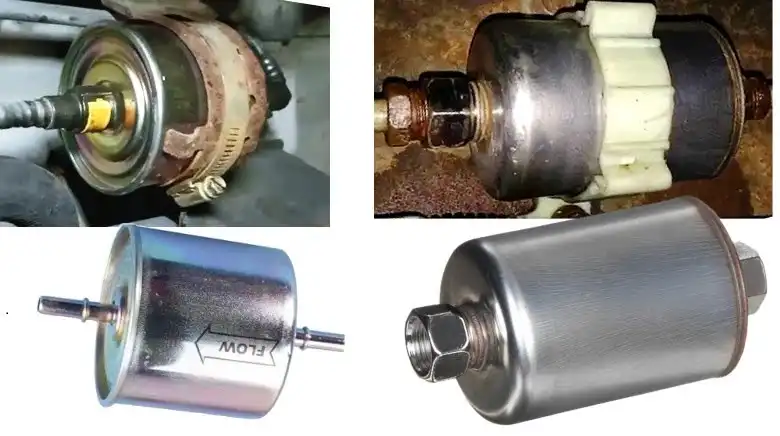

You’ll also likely need to disassemble any parts sitting over the filter such as the intake manifold. Some vehicles will have their fuel pump and thus their filter in the back of the vehicle, which means you’ll need to go into the trunk to access it. There might also be clips holding the filter in place that you’ll need to unfasten before pulling it out. In the end, it’s best to check your vehicle’s repair manual if you’re having a difficult time locating the fuel filter.
