How to replace the turn signal switch 2009-2014 Ford F-150

Chapter 1:

Set up

Step 1/1

Turn your engine off and set the parking brake.

Chapter 2:

Remove the top steering column cover

Step 1/2

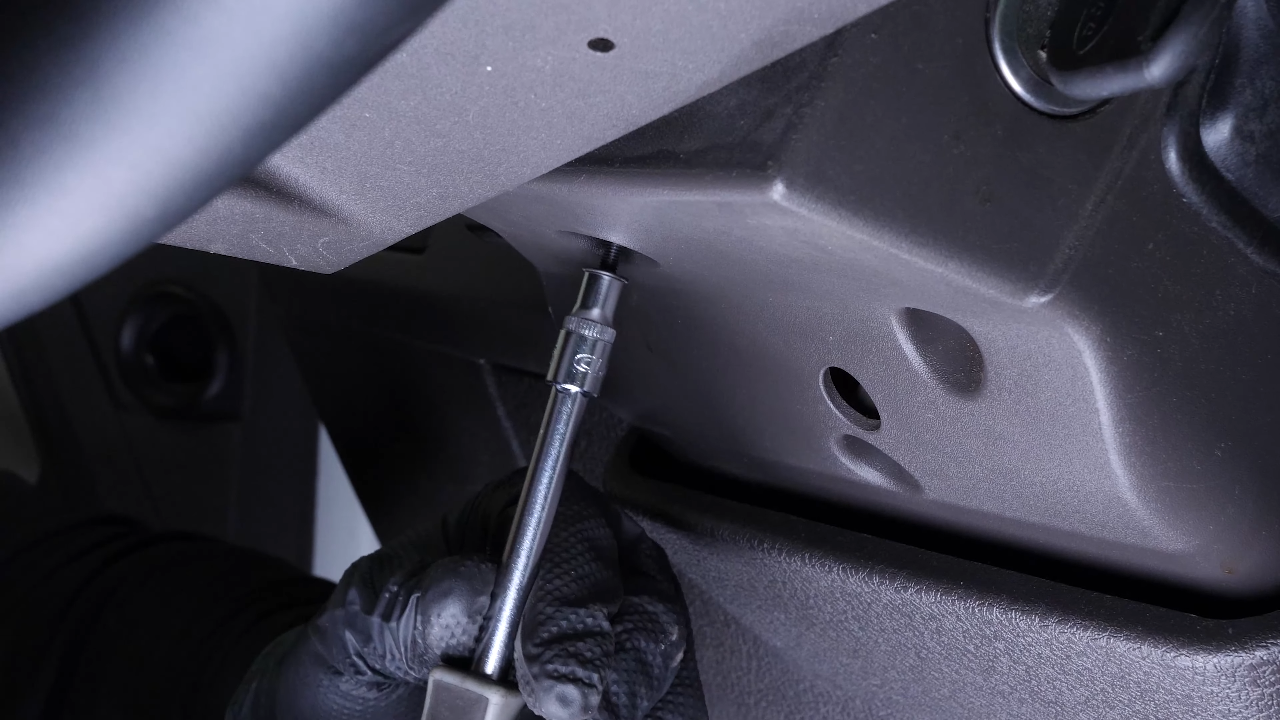

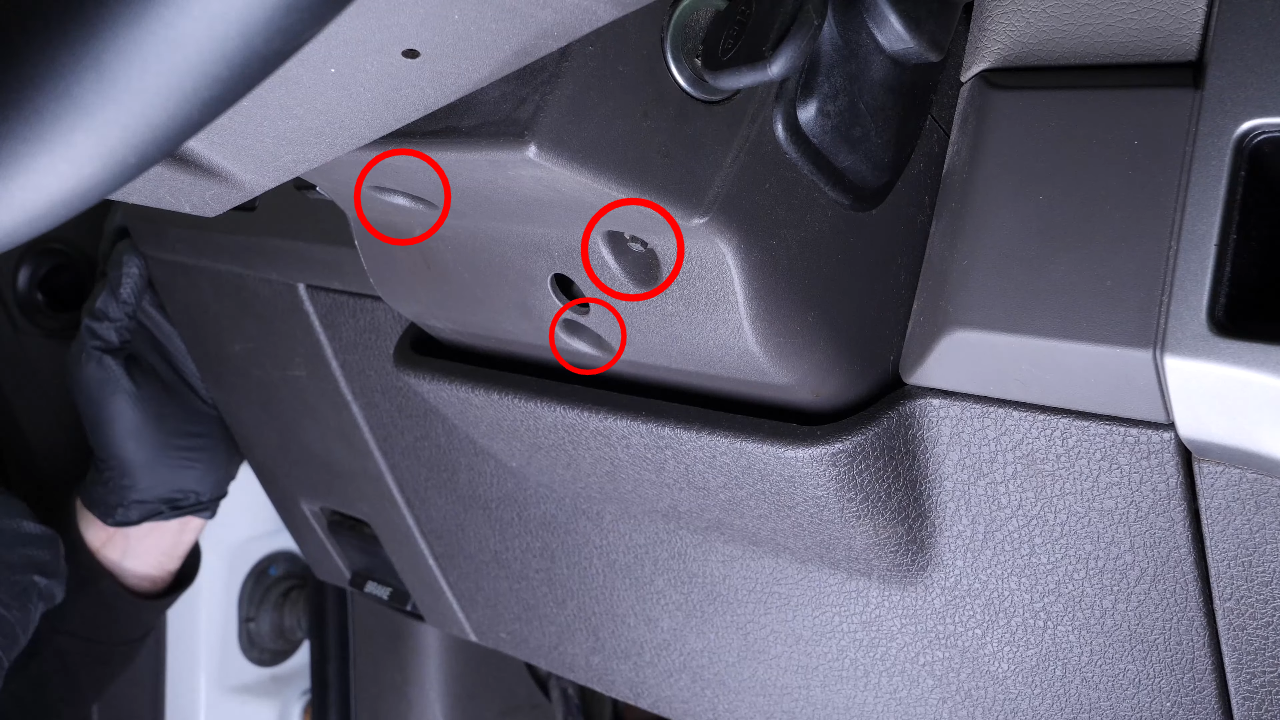

Using a ratchet, an extender and a 5.5mm socket, unscrew the 3 plastic holding screws on the steering column.

Chapter 2:

Step 2/2

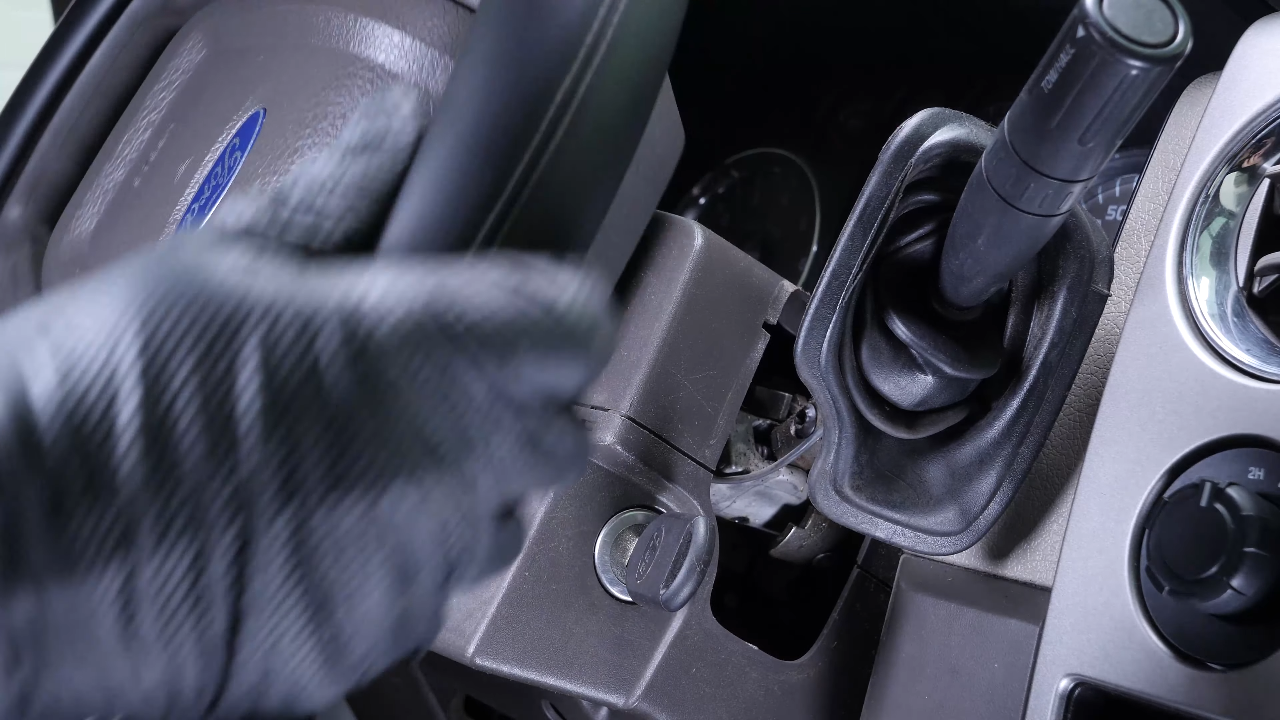

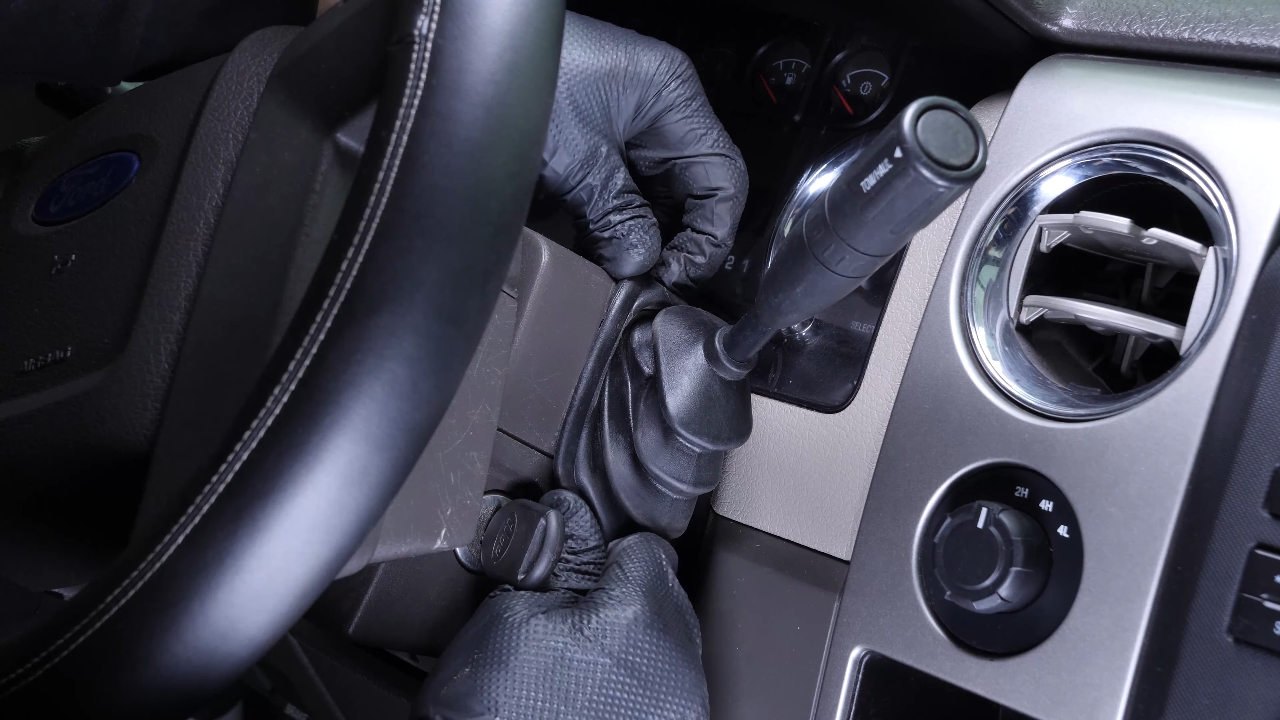

Remove the cover from the gear shift lever. Turn the steering wheel to access the first plastic locking pin on the steering column.

Chapter 3:

Remove the lower steering column cover

Step 1/2

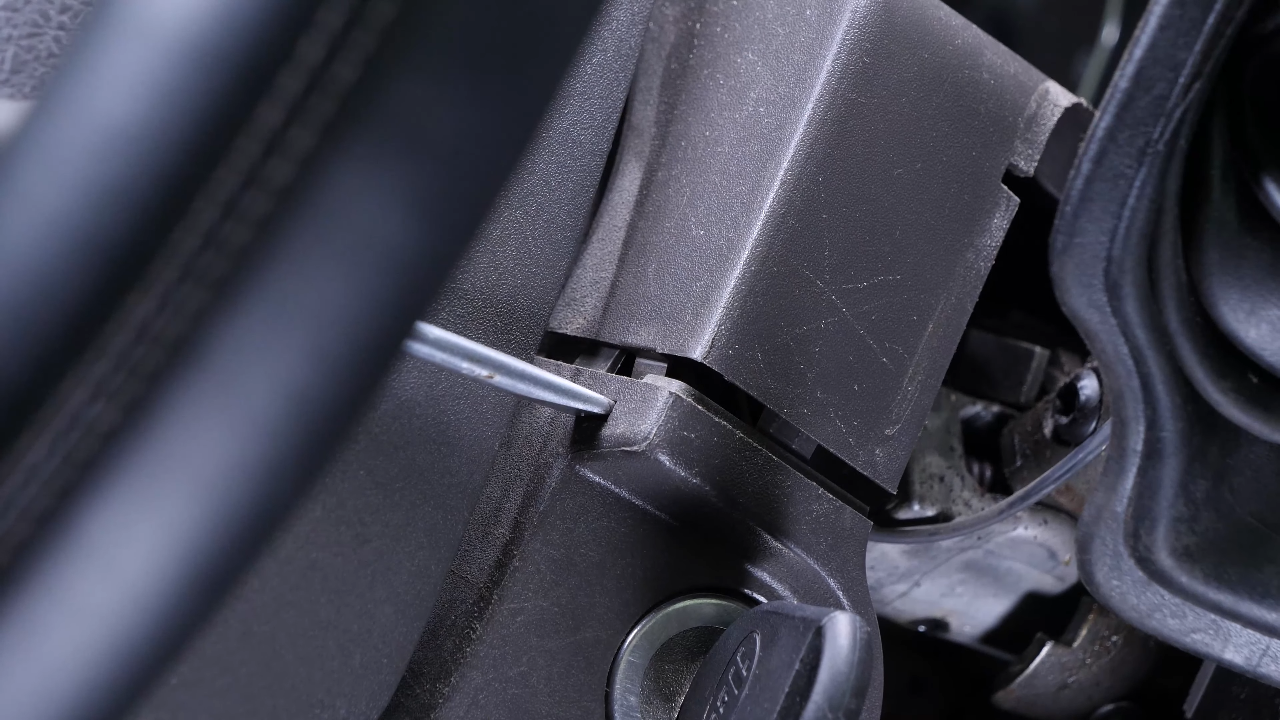

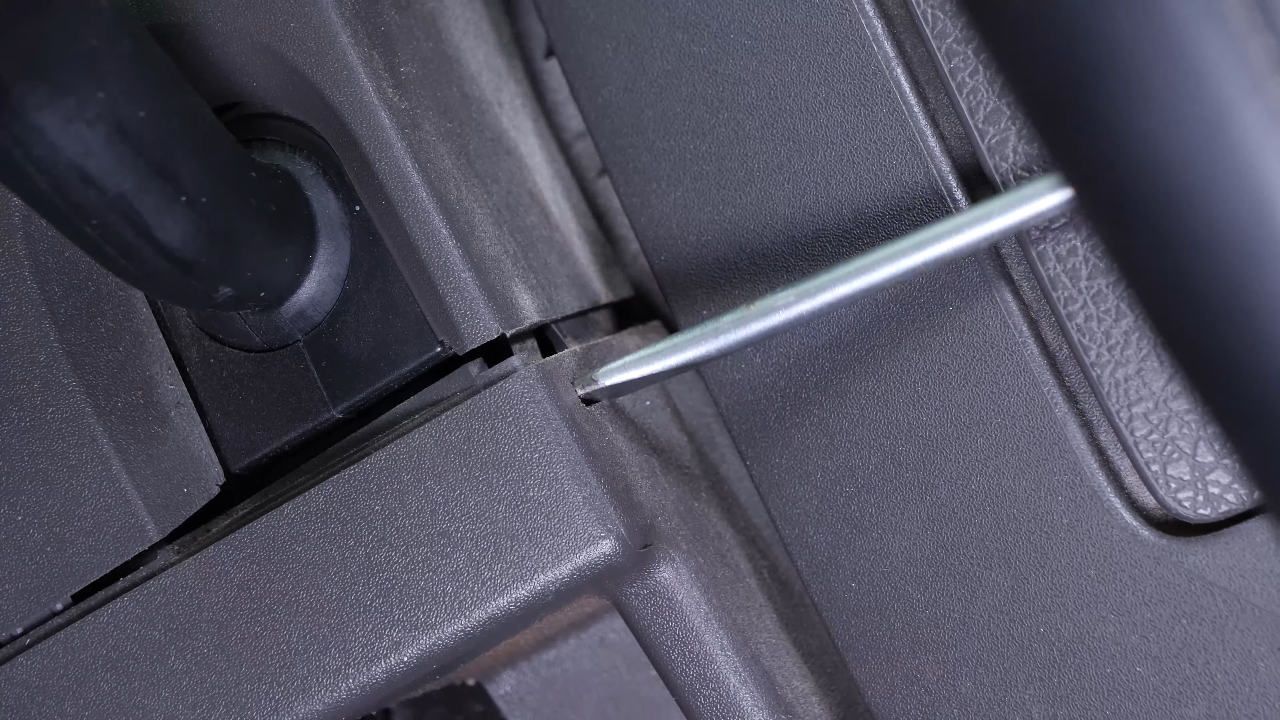

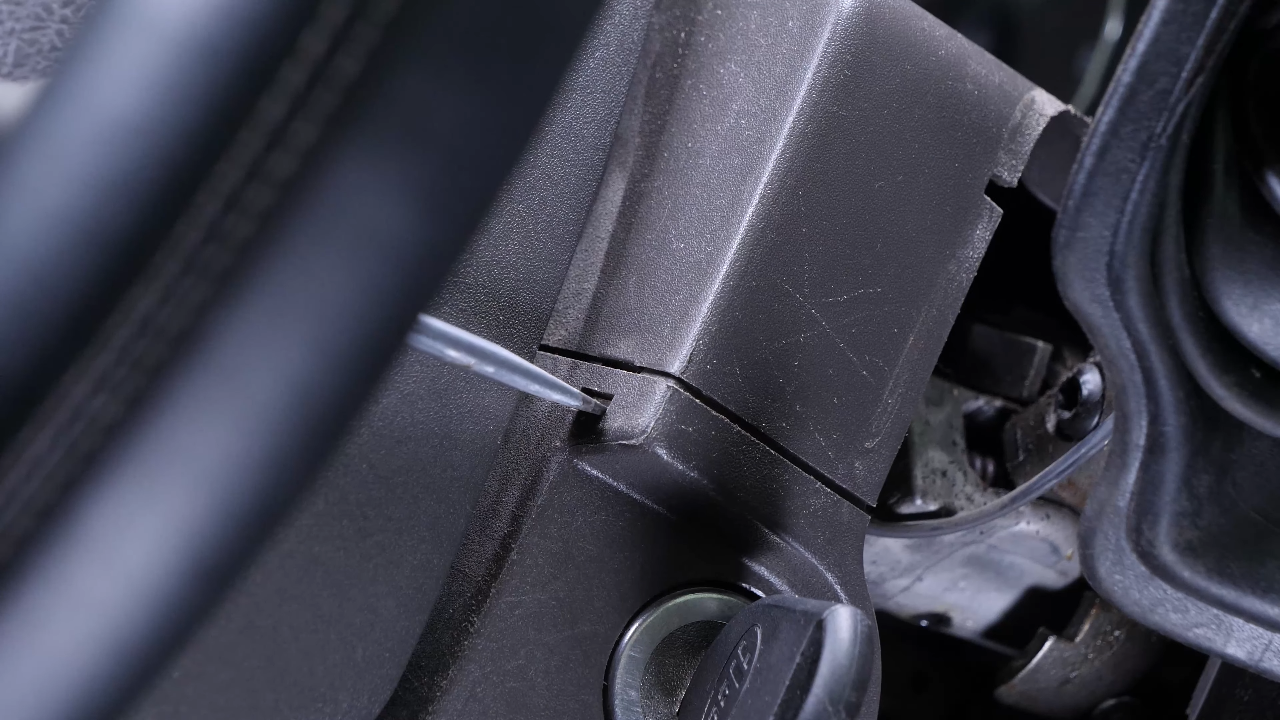

Insert a flathead screwdriver into the notch, then pry it. Repeat this step on the other side. Then lower the steering wheel so that the top plastic can be removed.

Chapter 3:

Step 2/2

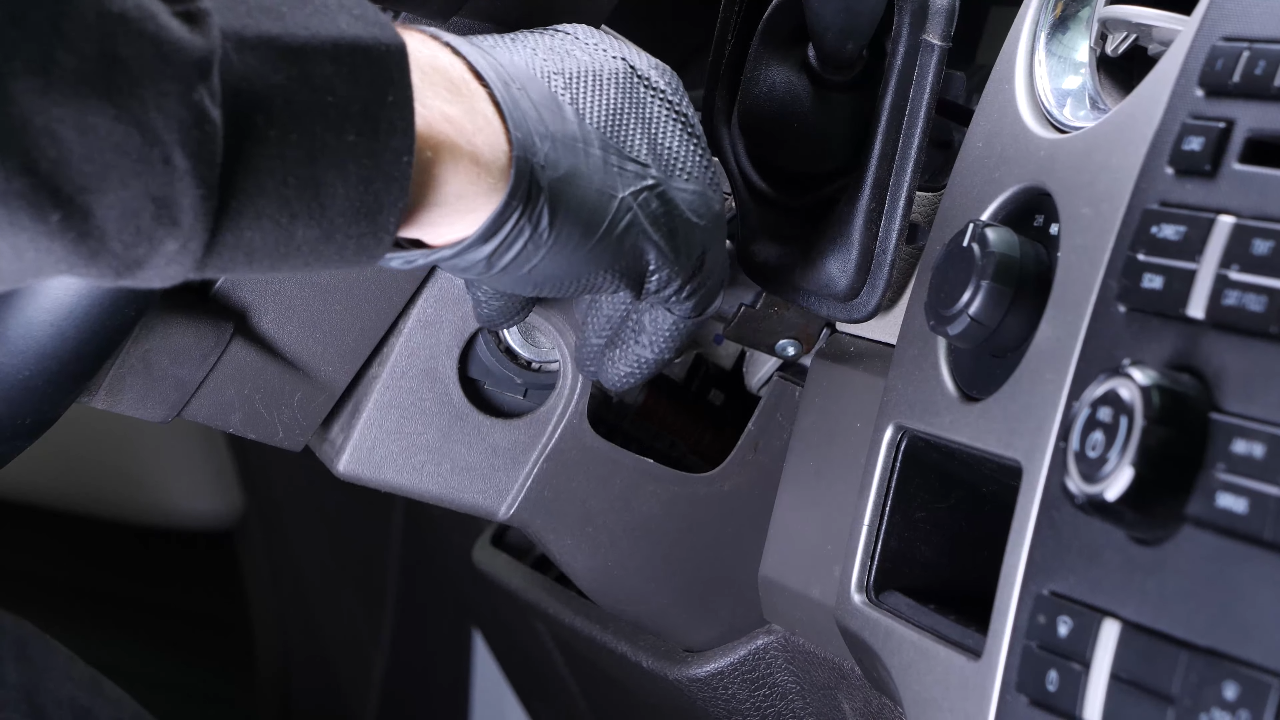

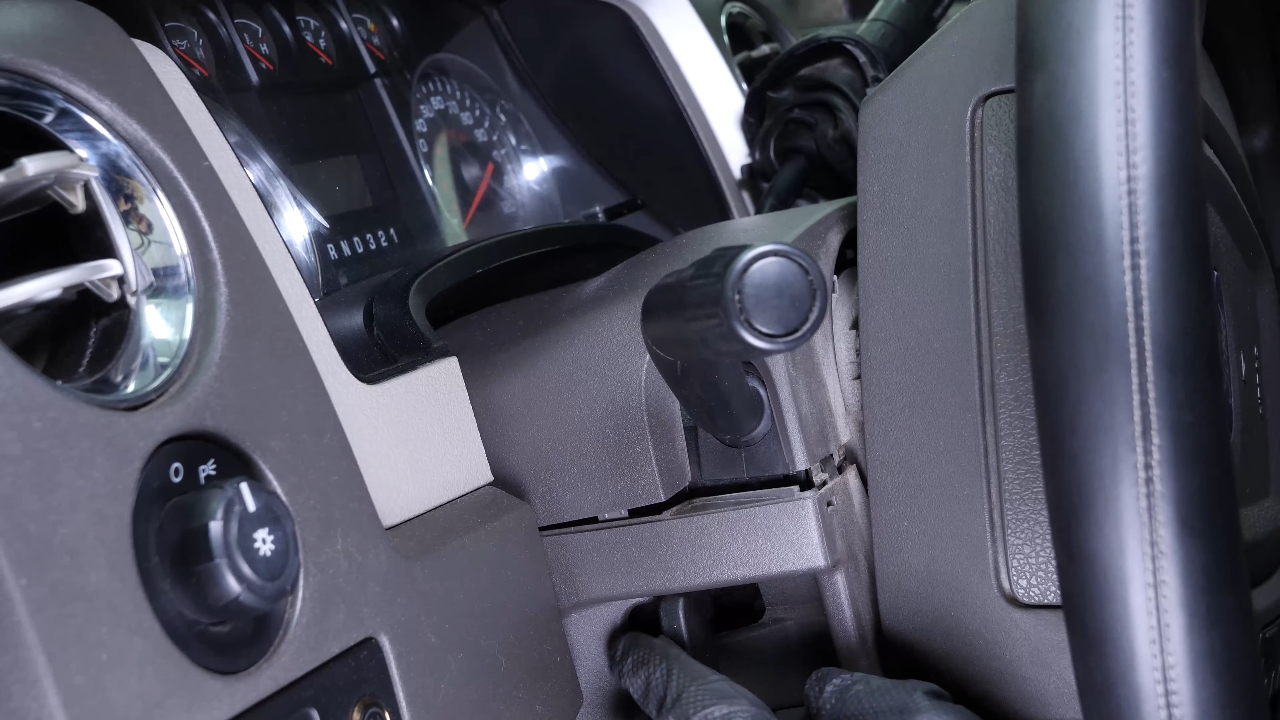

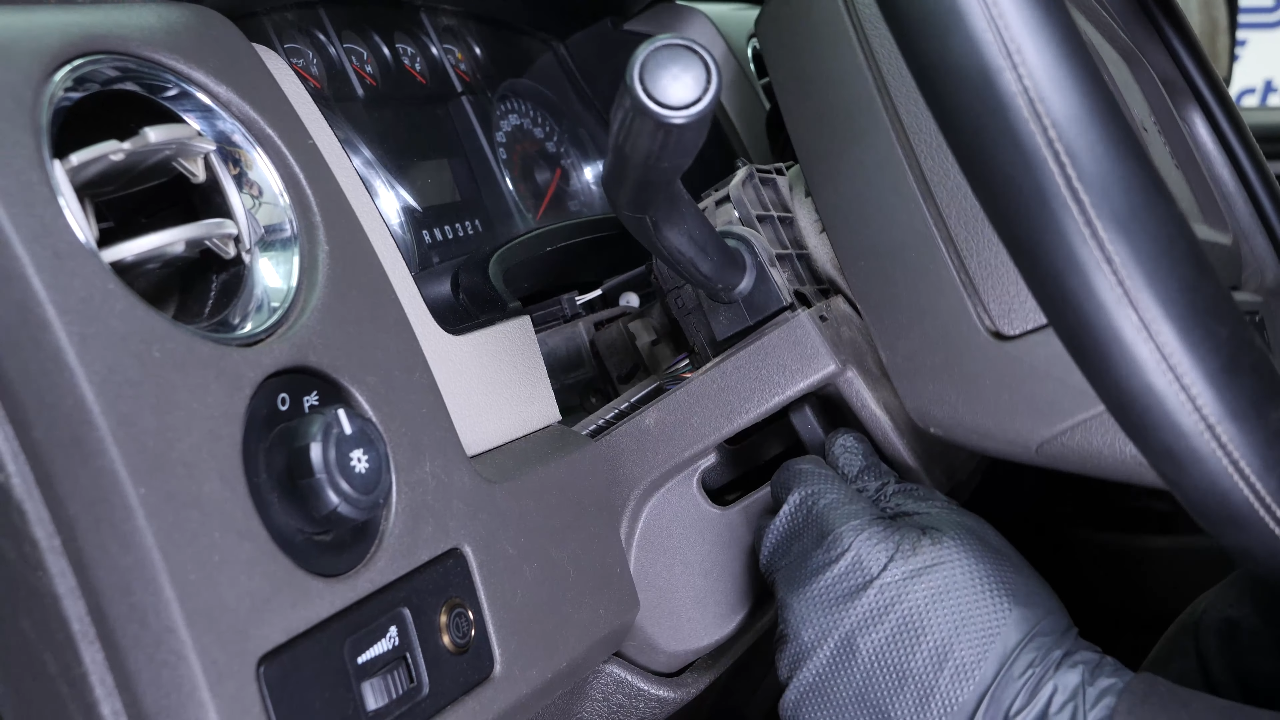

Then lift the steering wheel back up. Remove the key to make it easier to remove the bottom plastic.

Chapter 4:

Remove the turn signal switch

Step 1/2

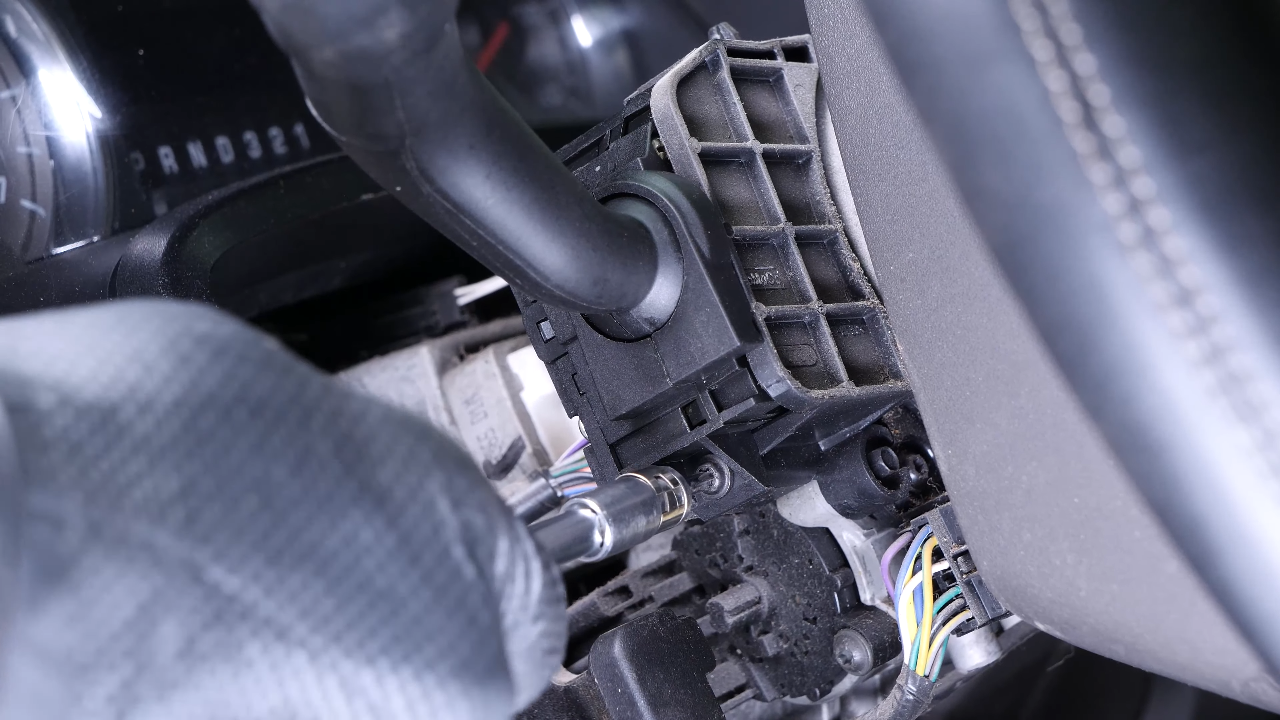

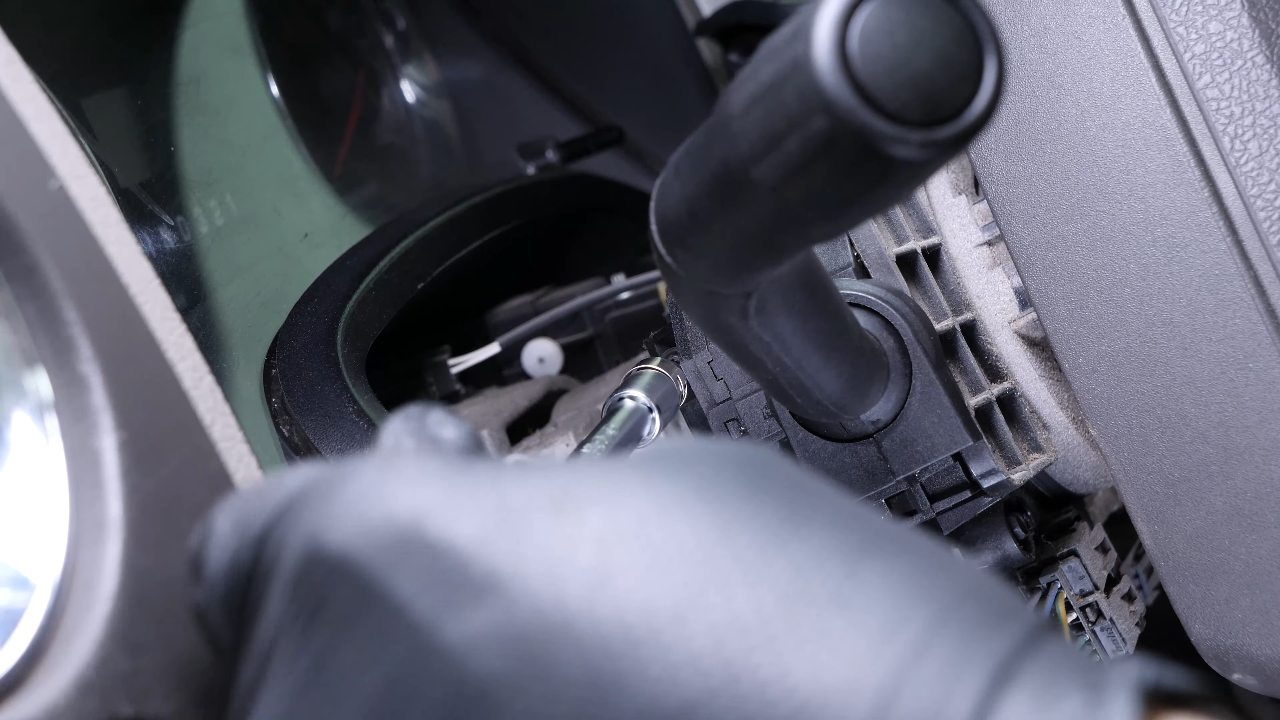

Using a screwdriver and a Torx T15 bit, unscrew the 2 screws holding the turn signal switch.

Chapter 4:

Step 2/2

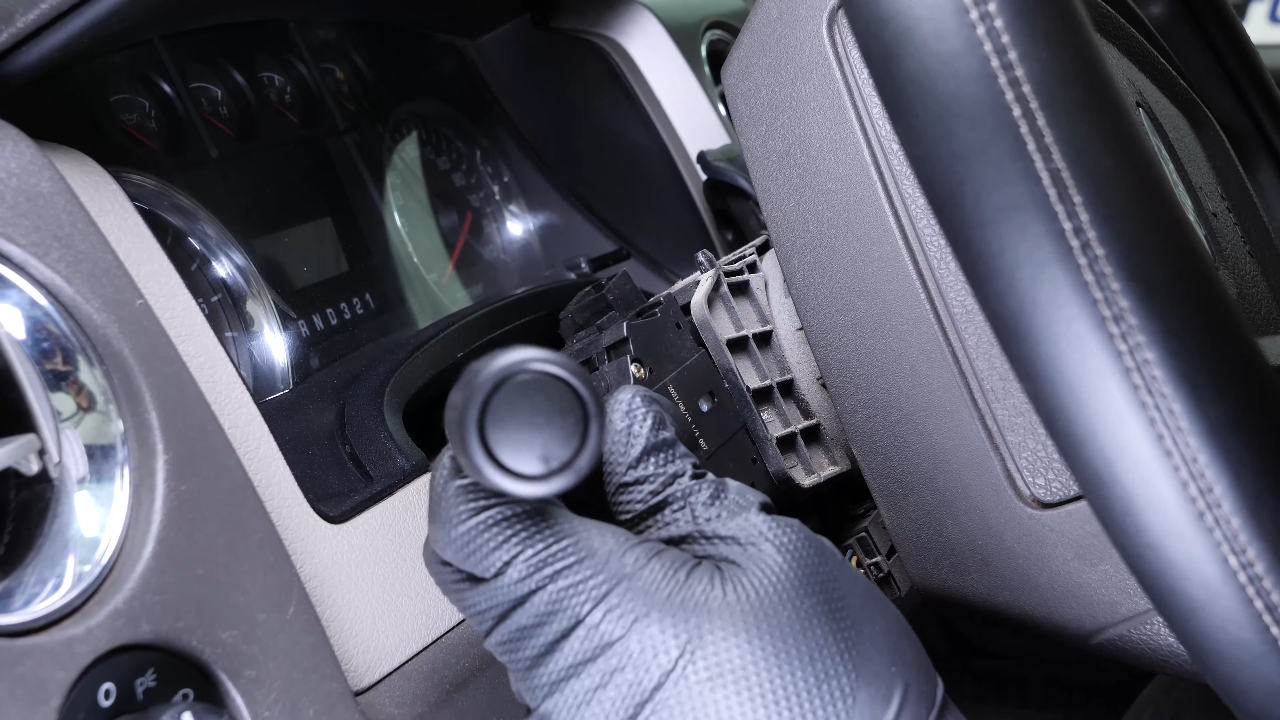

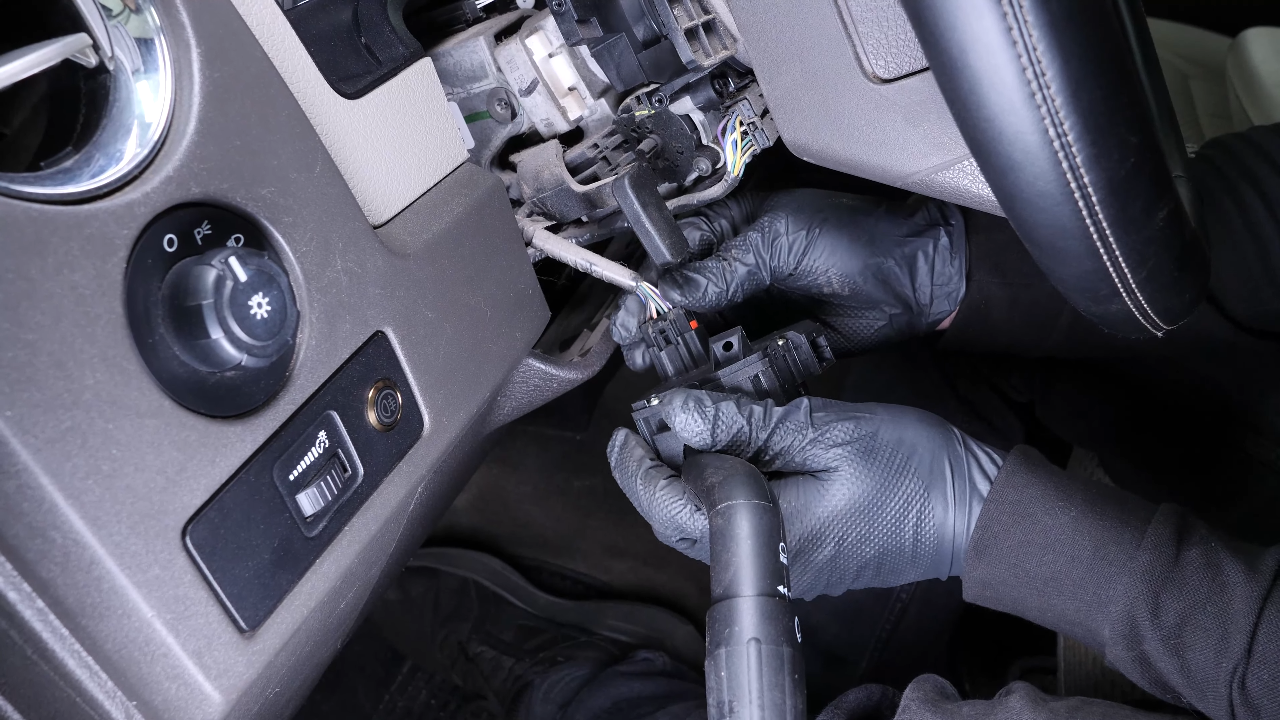

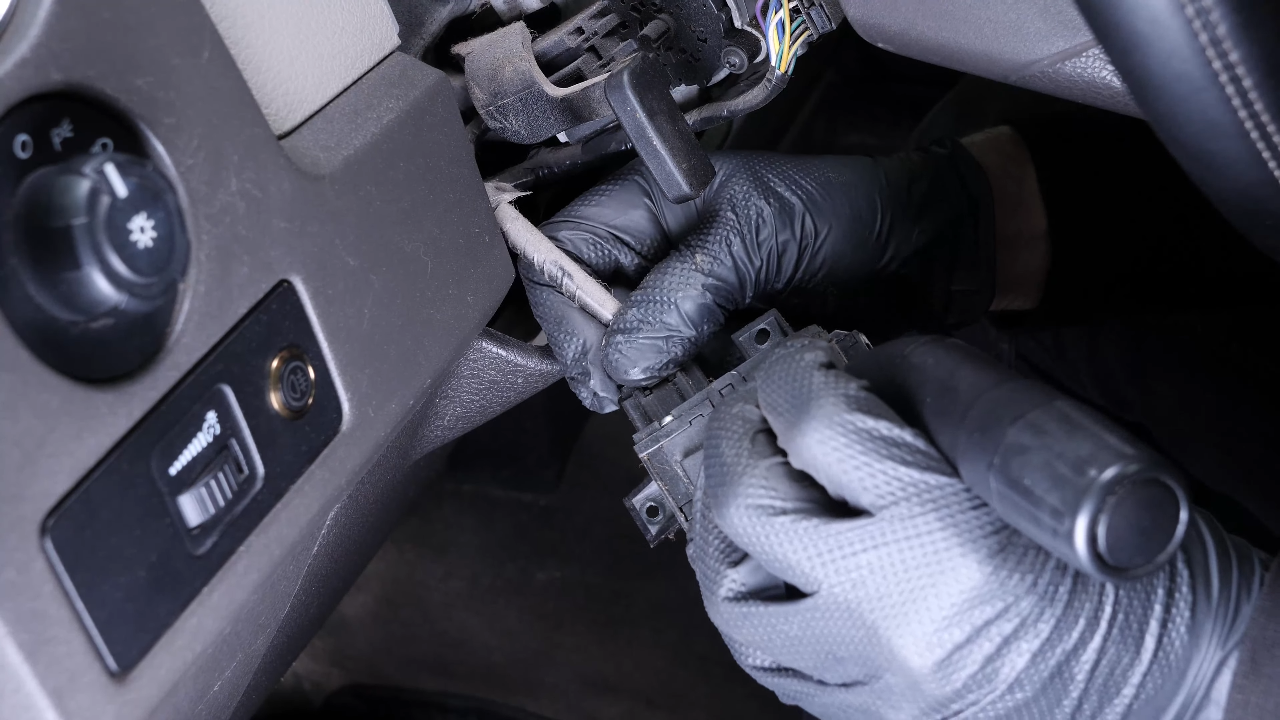

Remove it from its housing, then disconnect the electrical connector by pressing the plastic tab.

Chapter 5:

Put the turn signal switch back

Step 1/1

Take the new turn signal switch and plug it in.
Put it back in its place. Then screw the 2 retaining screws back in.

Chapter 6:

Put the lower steering column cover back

Step 1/4

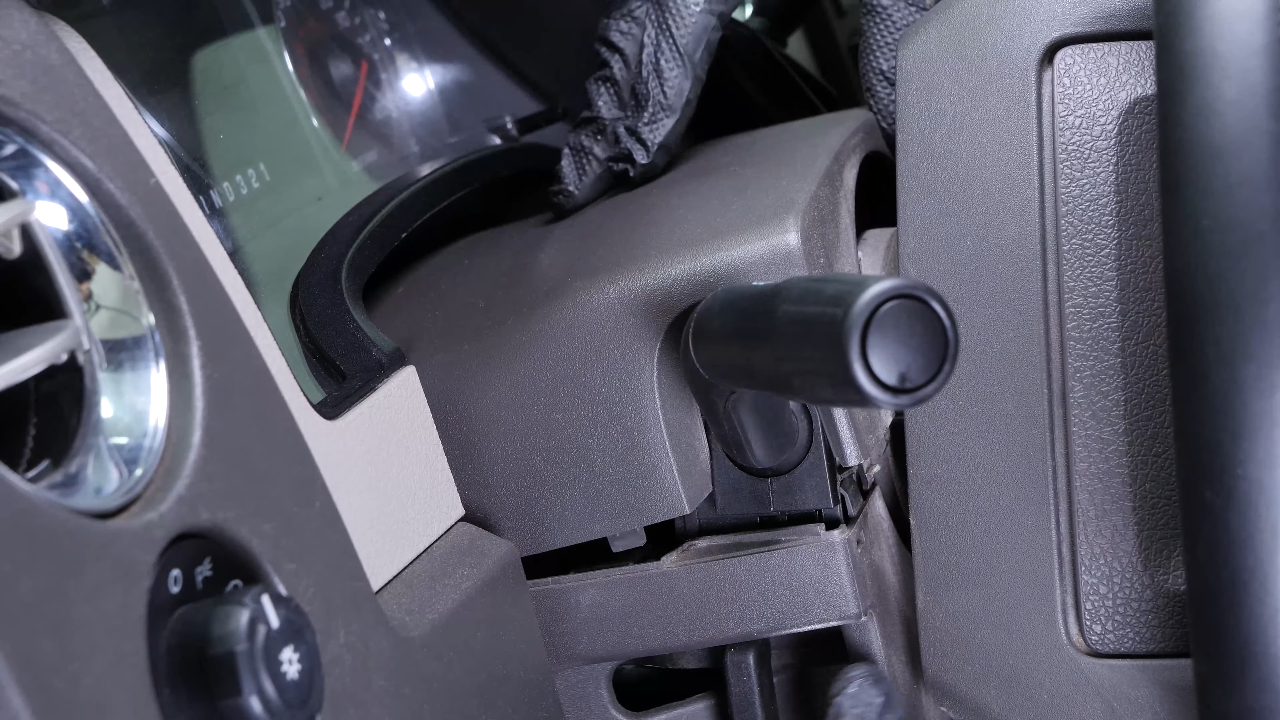

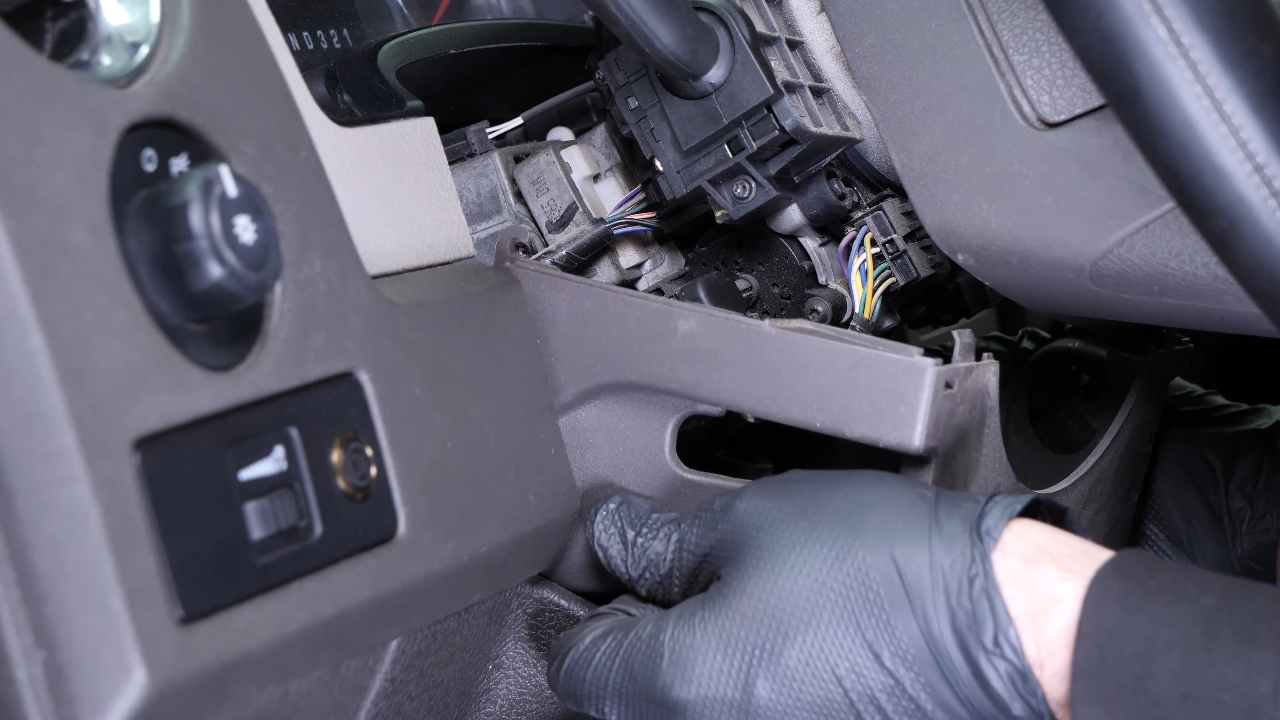

Replace the bottom plastic by fitting it into the lock. Lower the steering wheel, and snap the top plastic onto the left side.

Chapter 6:

Step 2/4

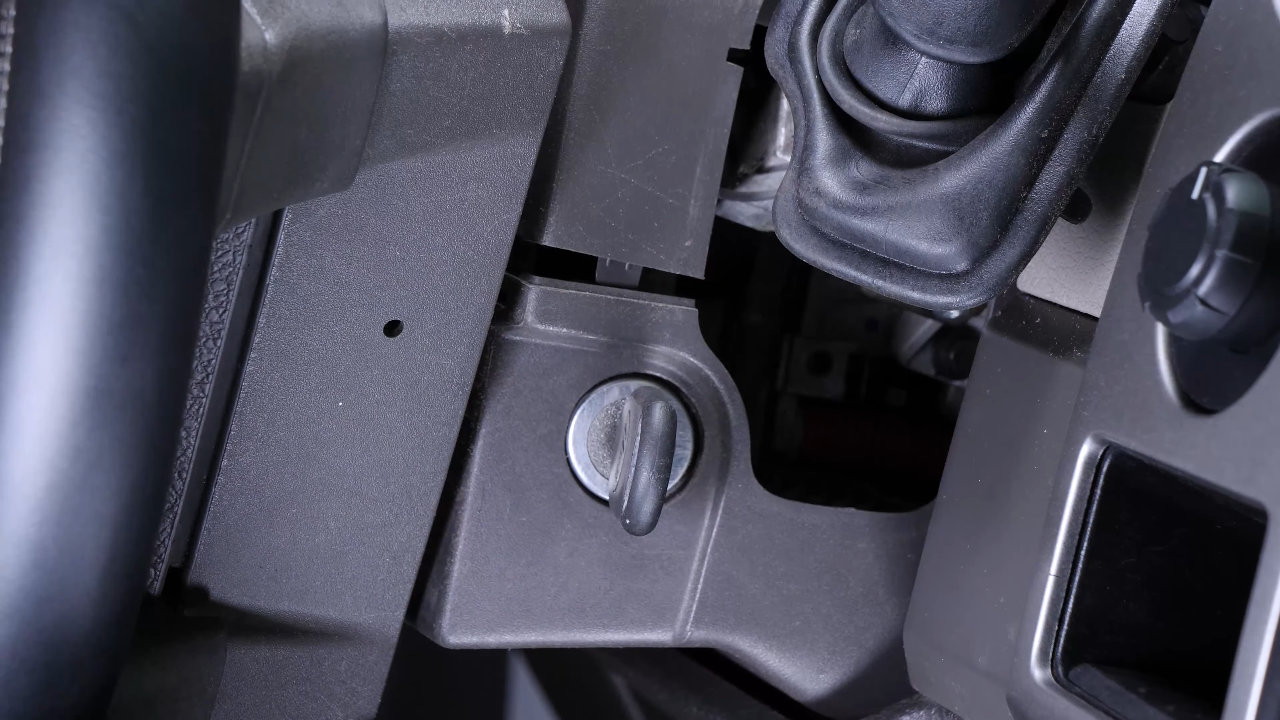

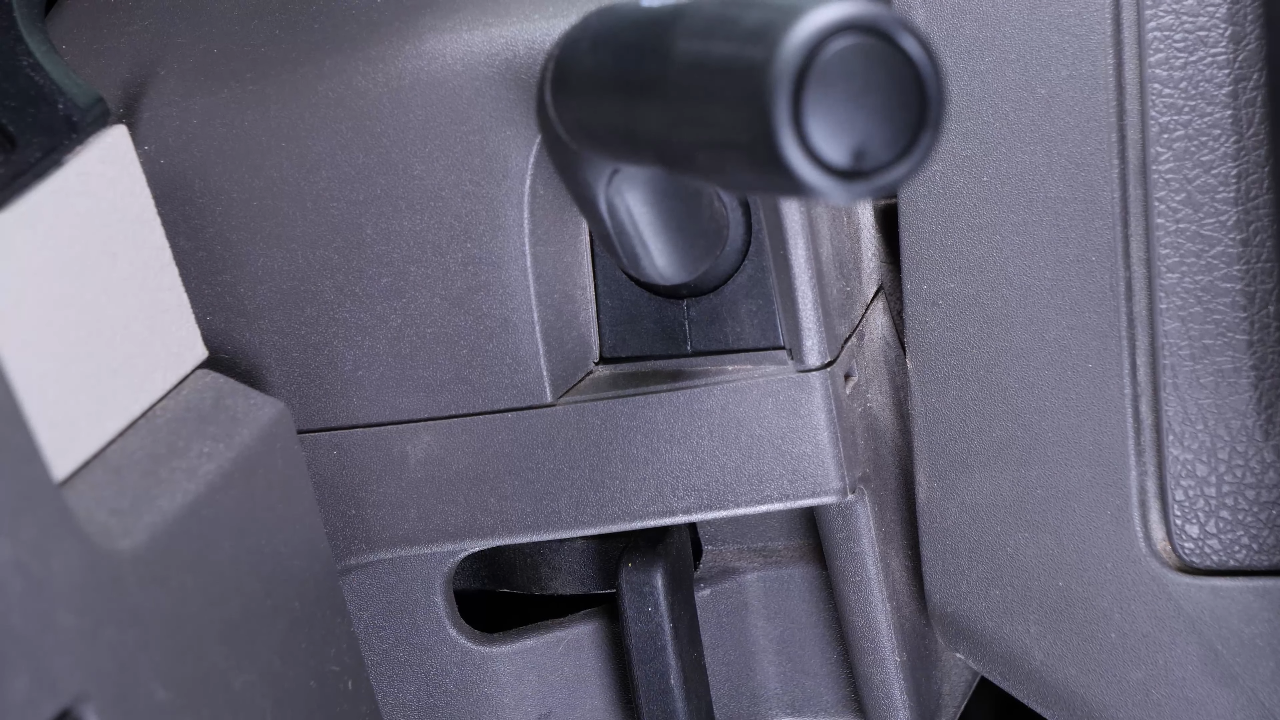

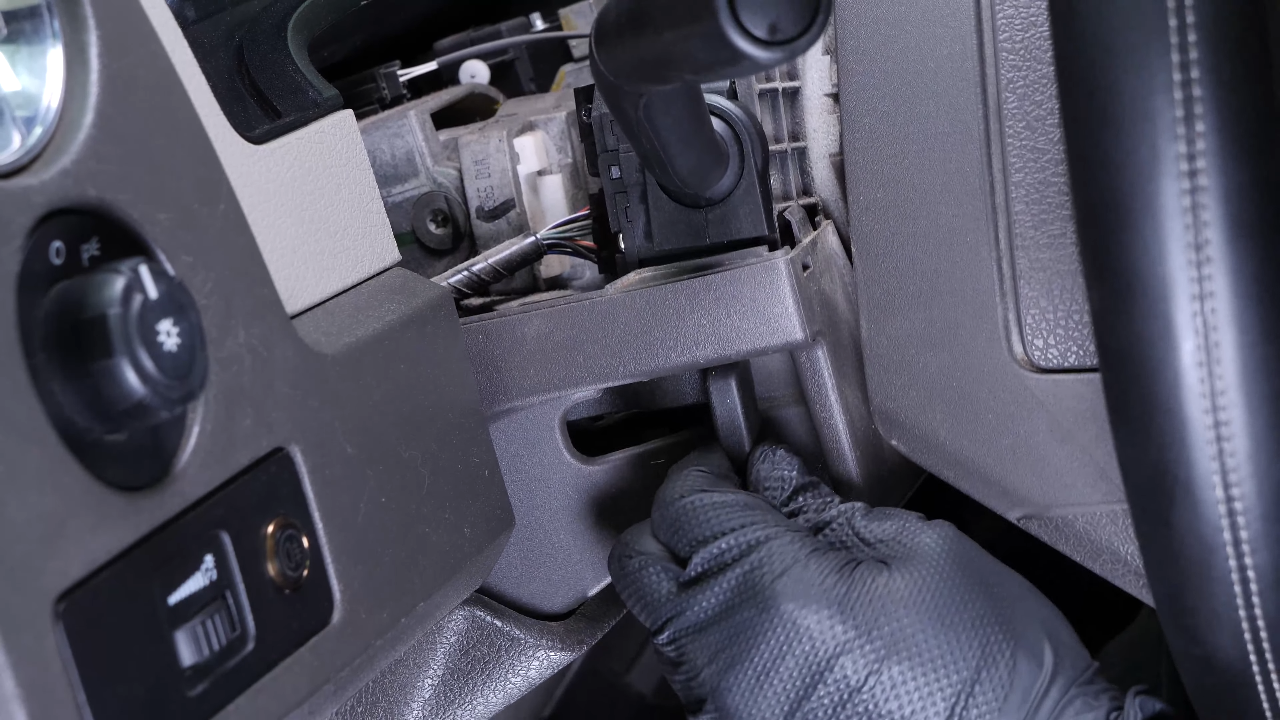

Reinsert the key so you can turn the steering wheel and put the right side back in place. Put the cover back on the gear shift lever.

Chapter 6:

Step 3/4

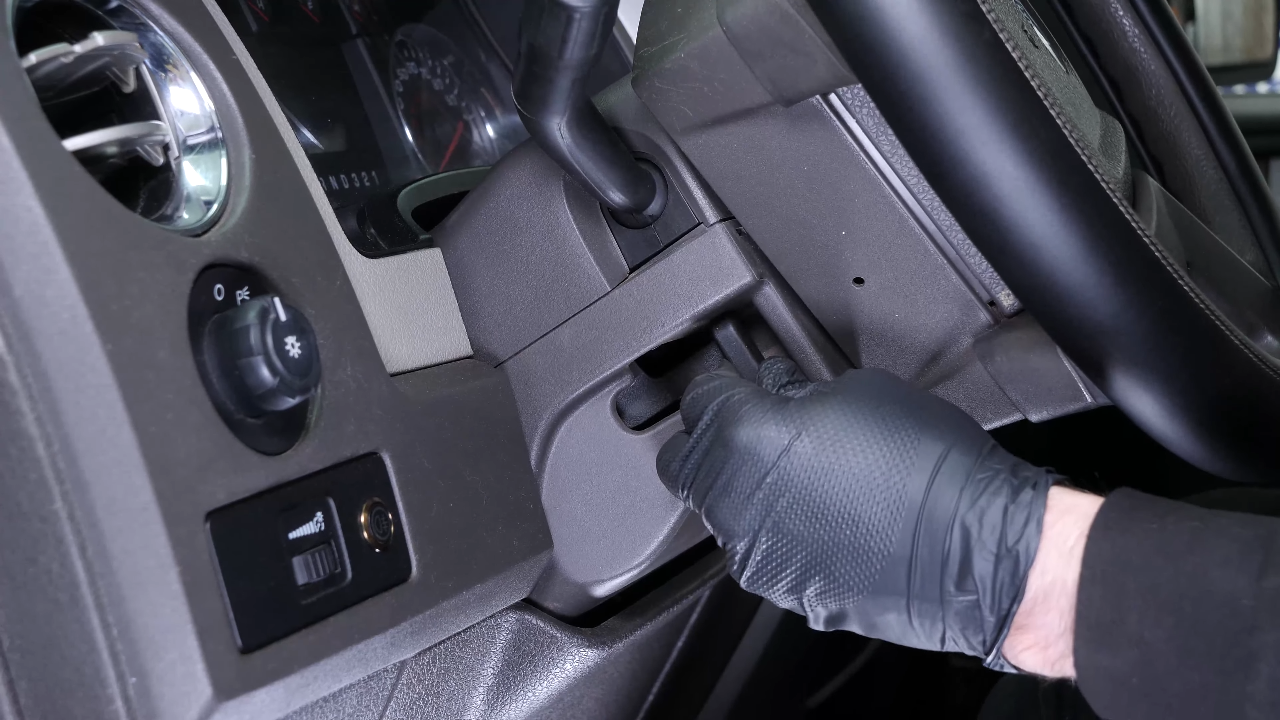

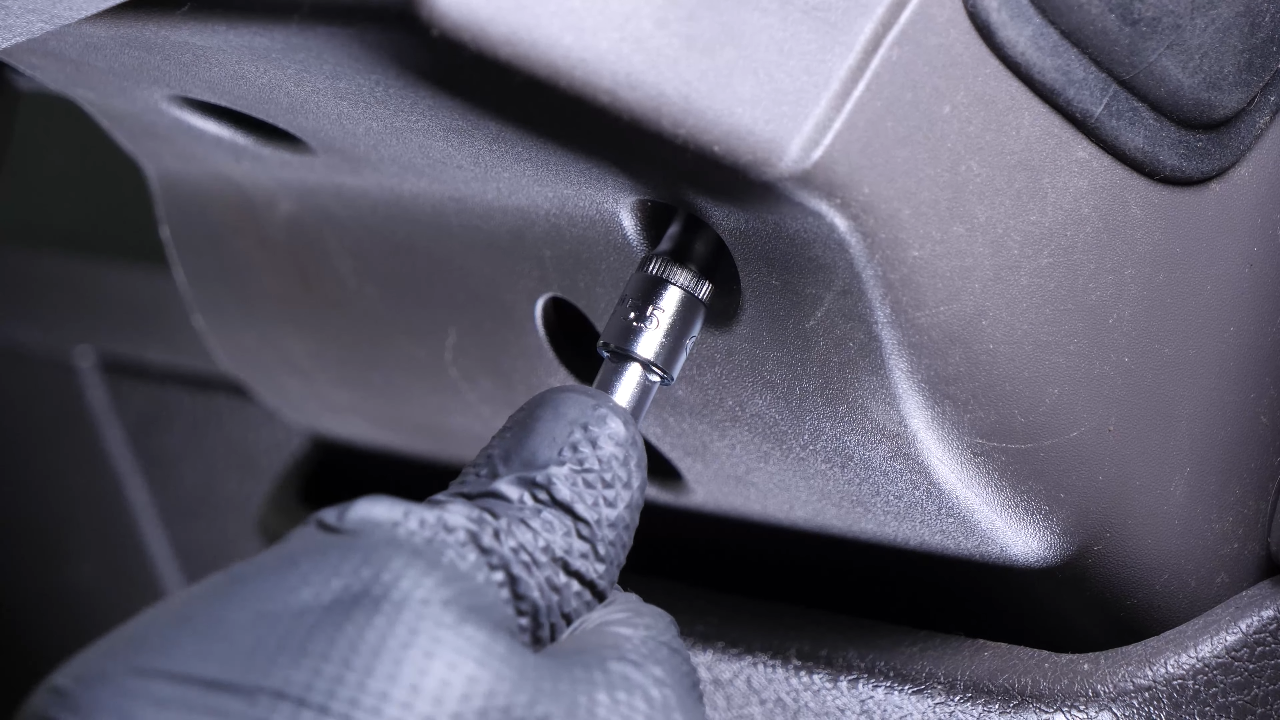

Lift the steering wheel back up. Then screw the 3 holding screws back in.

Chapter 6:

Step 4/4

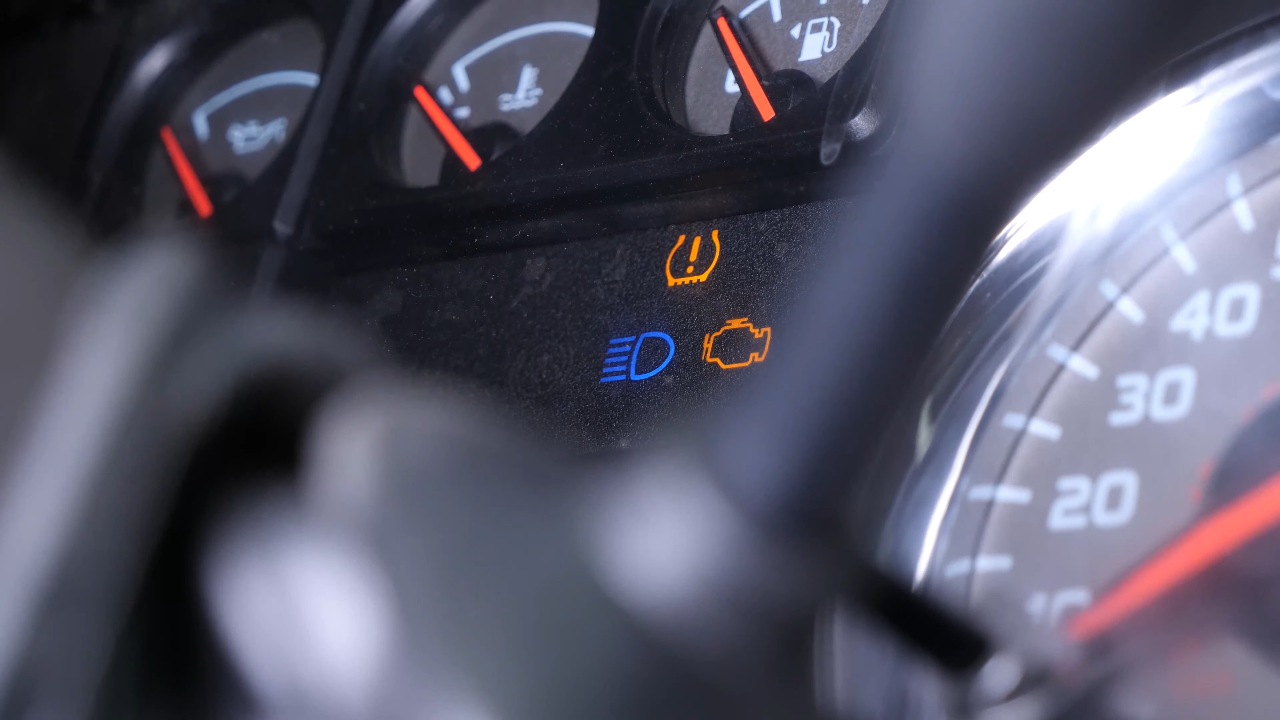

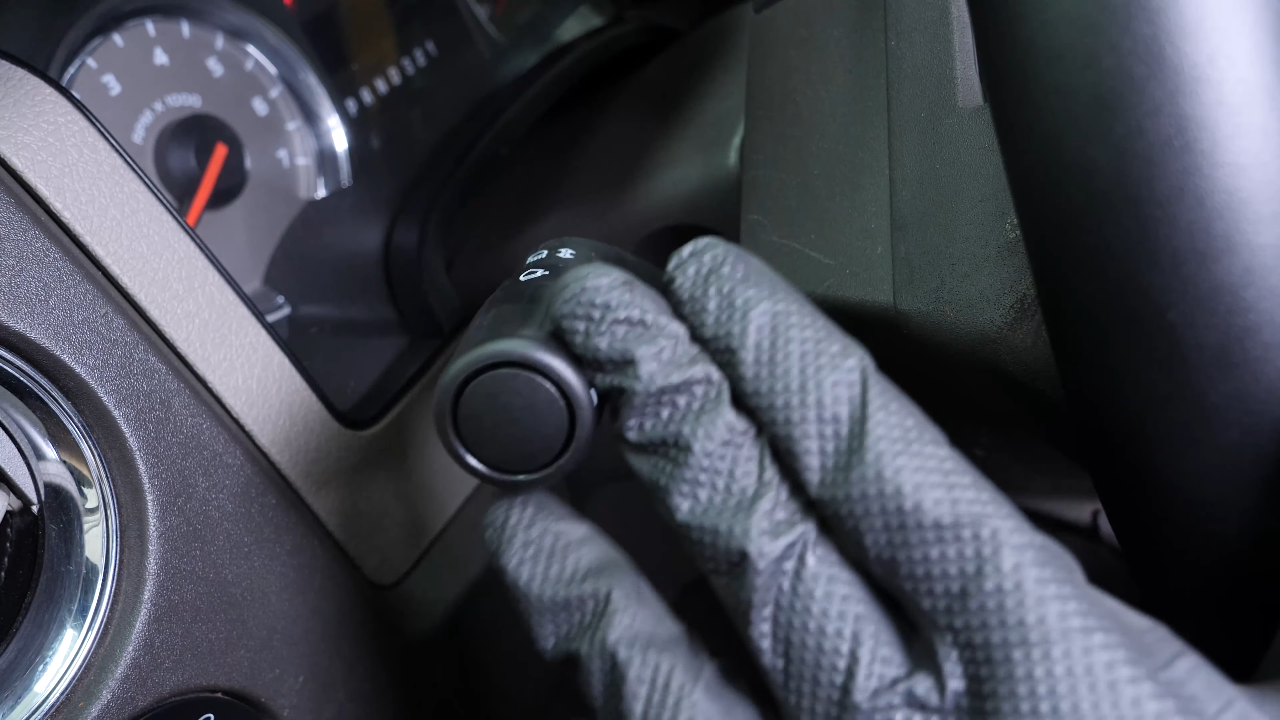

You can now test your turn signal switch. Operation complete.
