How to change the oil and the oil Filter 2009-2014 Ford F-150

Chapter 1:

Open the hood

Step 1/1

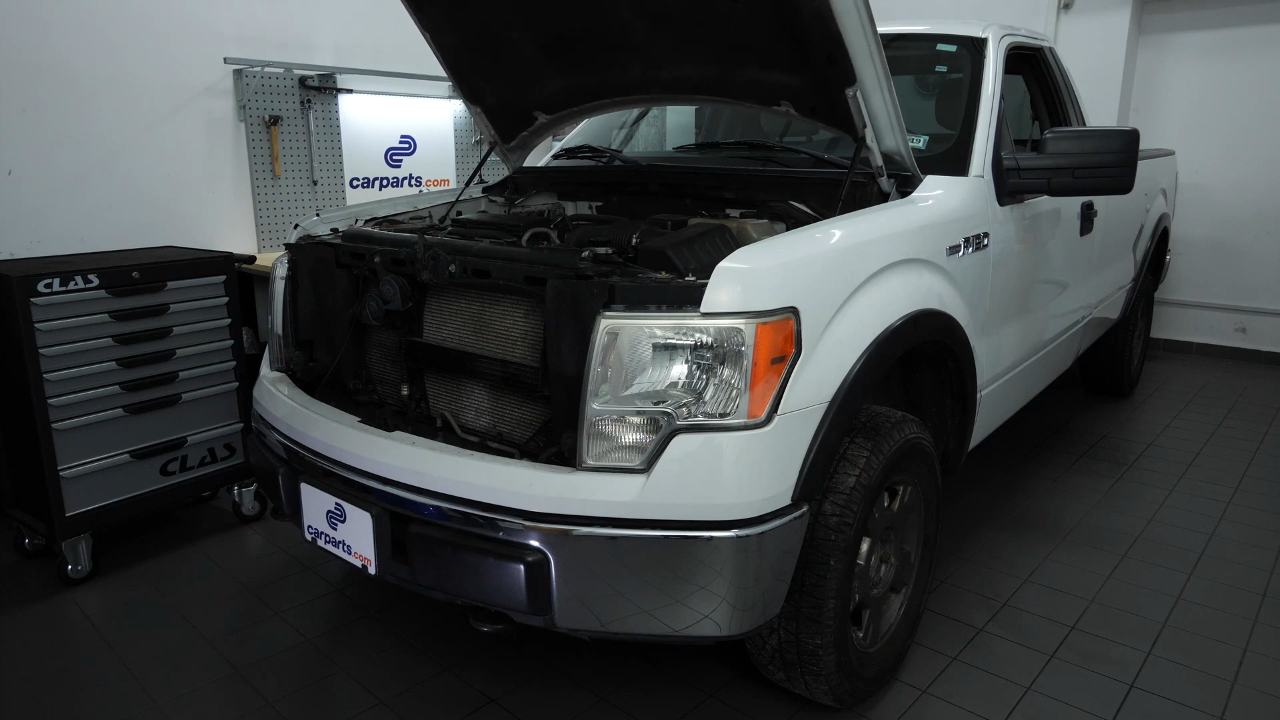

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 2:

Open the filler cap

Step 1/1

Open your oil filler cap, this will facilitate the flow of oil when draining.

Chapter 3:

Lift the vehicle

Step 1/2

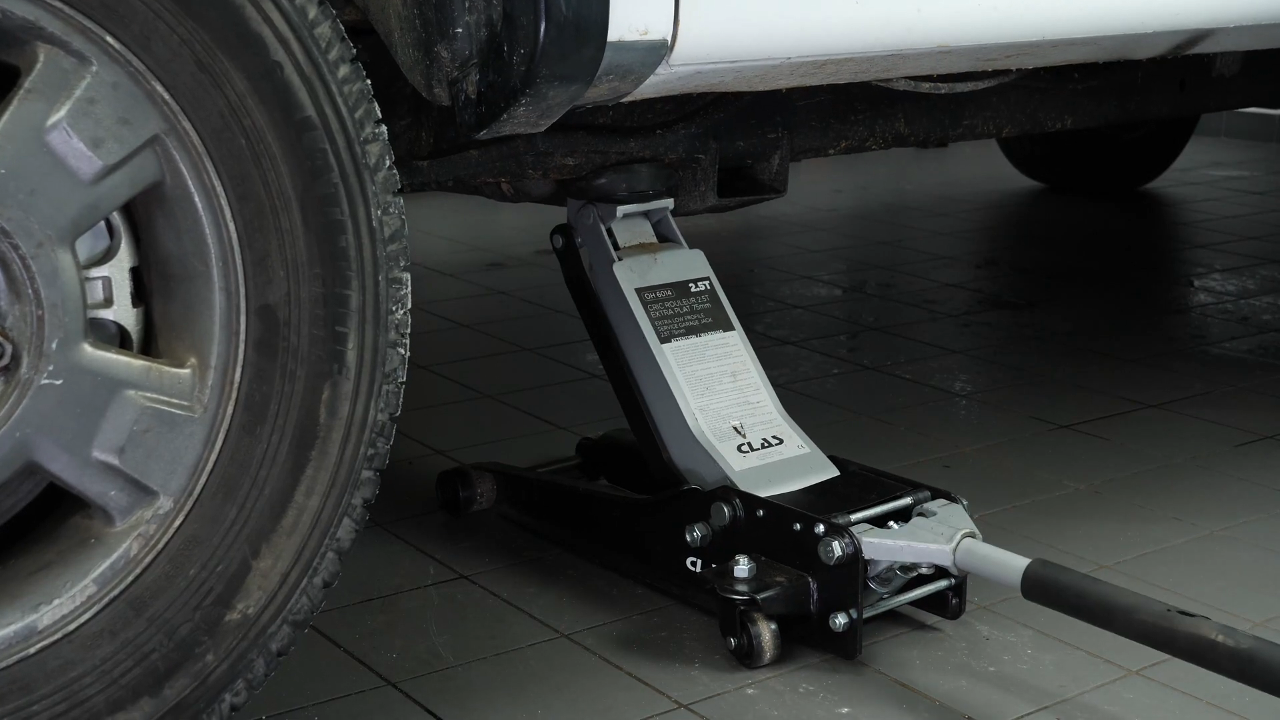

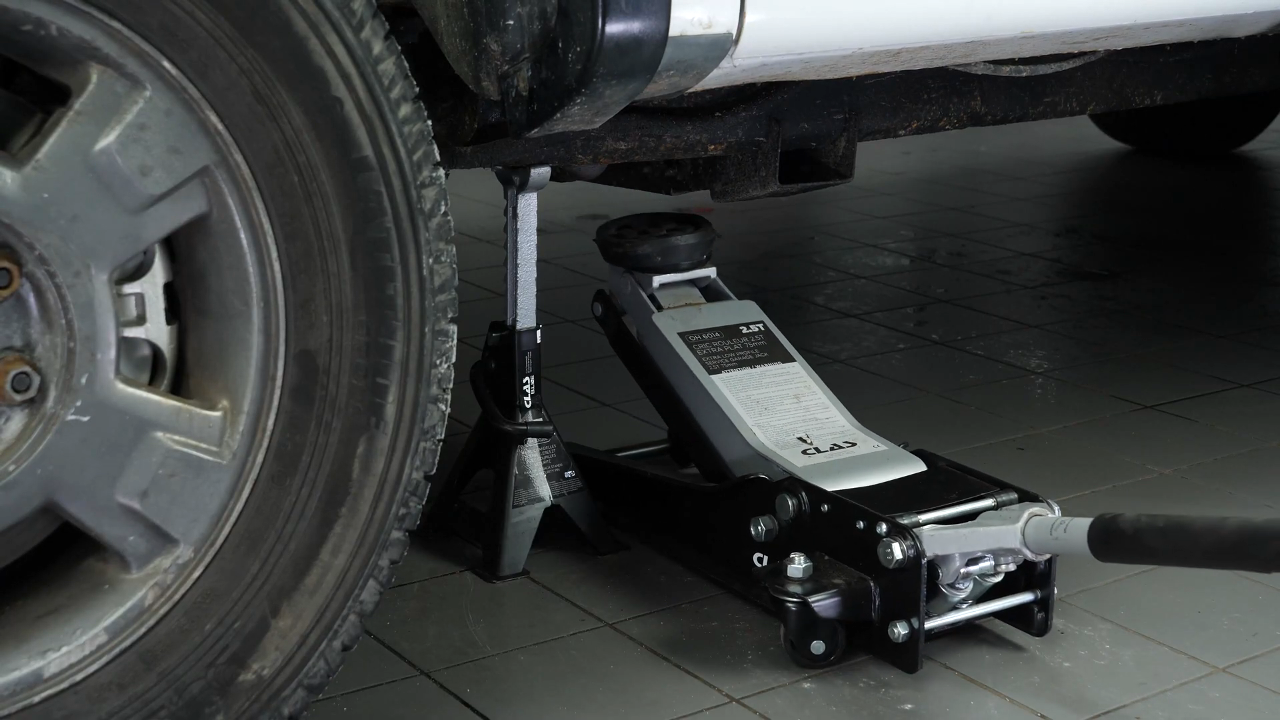

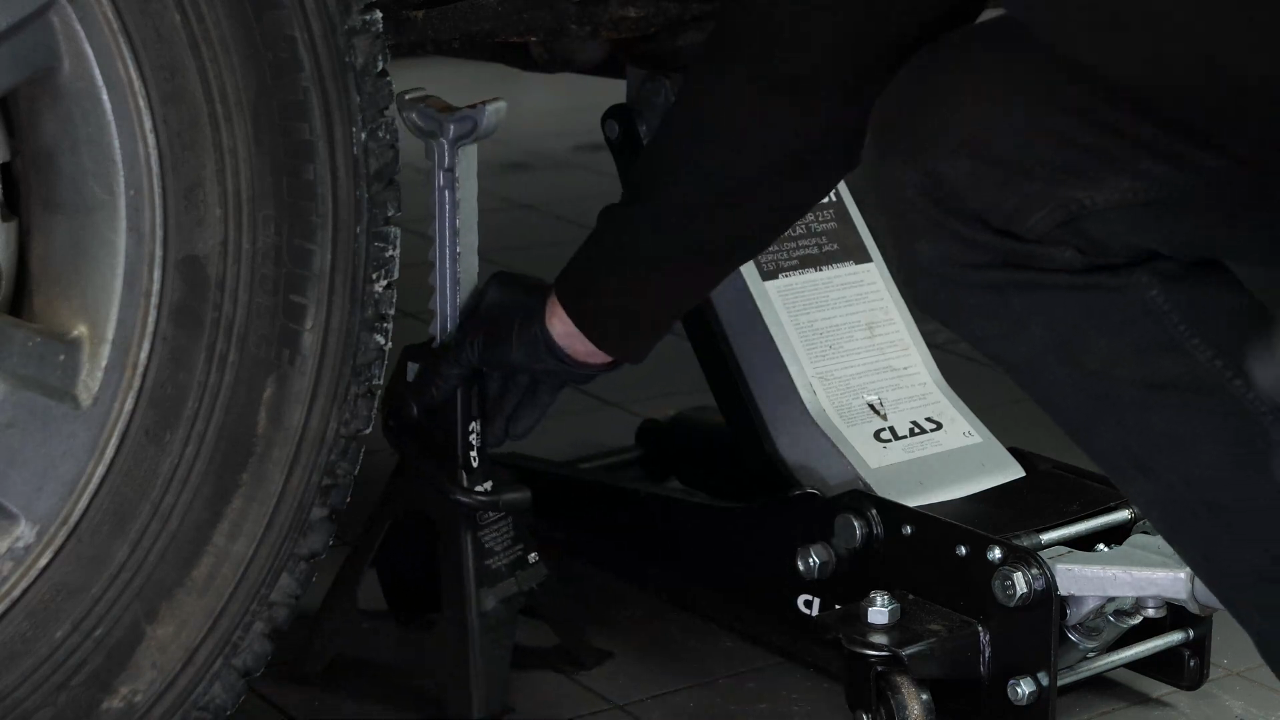

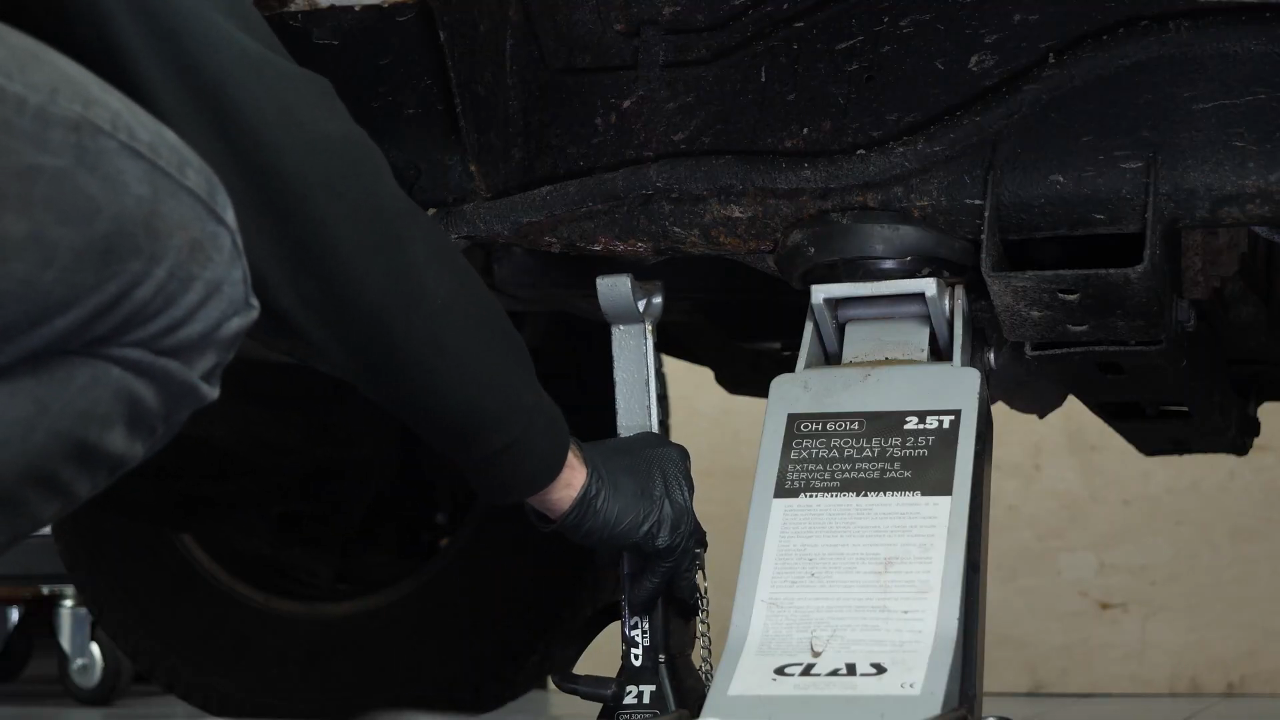

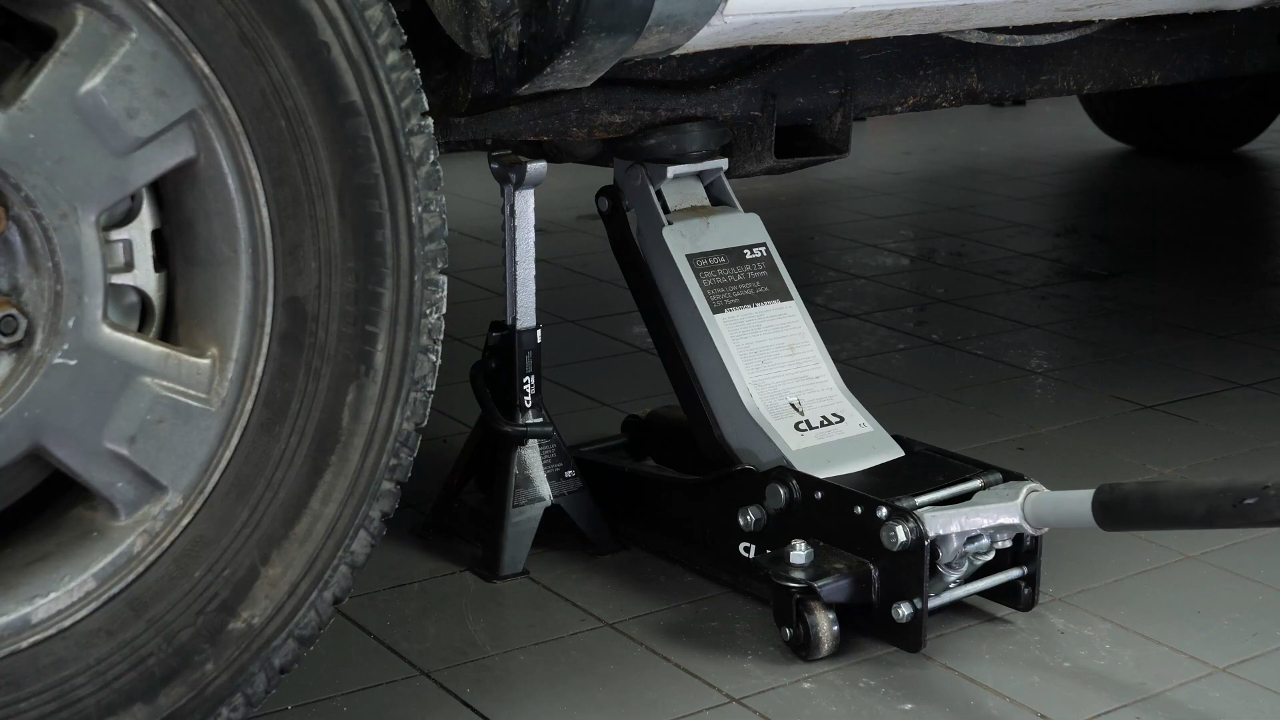

Lift the front of your vehicle. Place the vehicle on the two axle stands.

Chapter 3:

Step 2/2

This will allow you access to the drain plug.

Chapter 4:

Remove the skid plate

Step 1/1

You can then remove the skid plate, if present, to access the drain plug.

Chapter 5:

Change the oil

Step 1/2

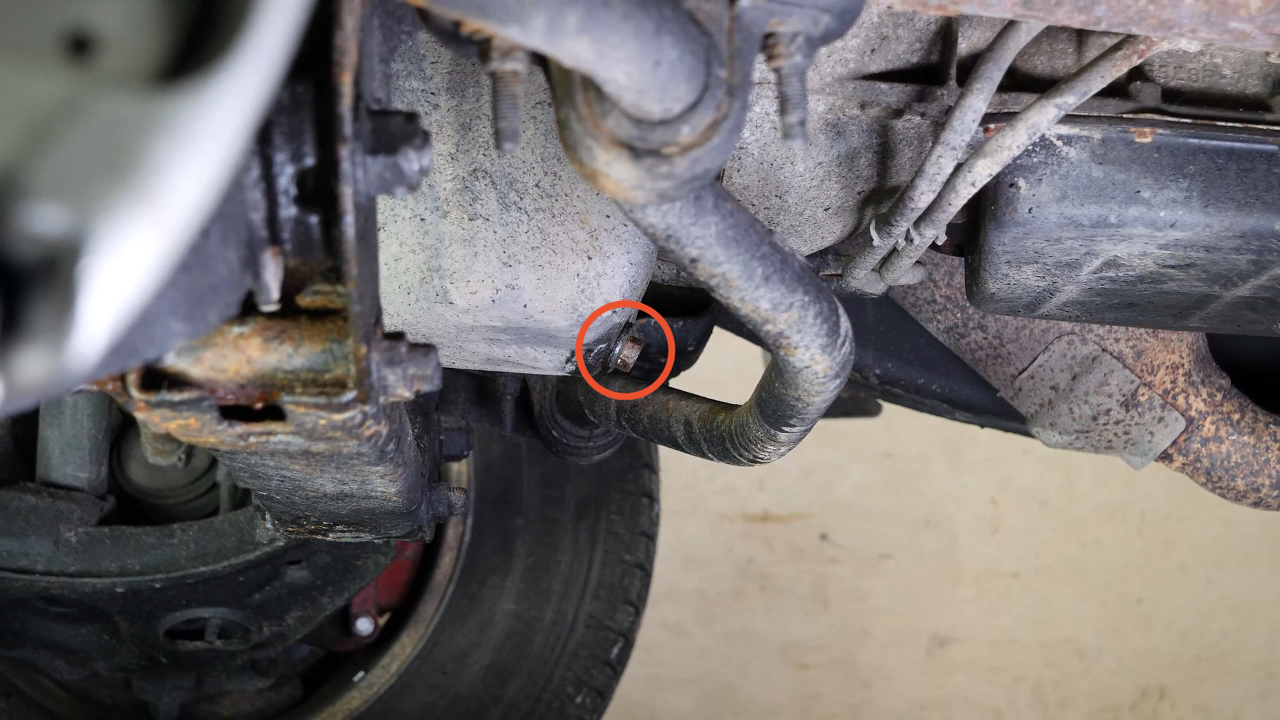

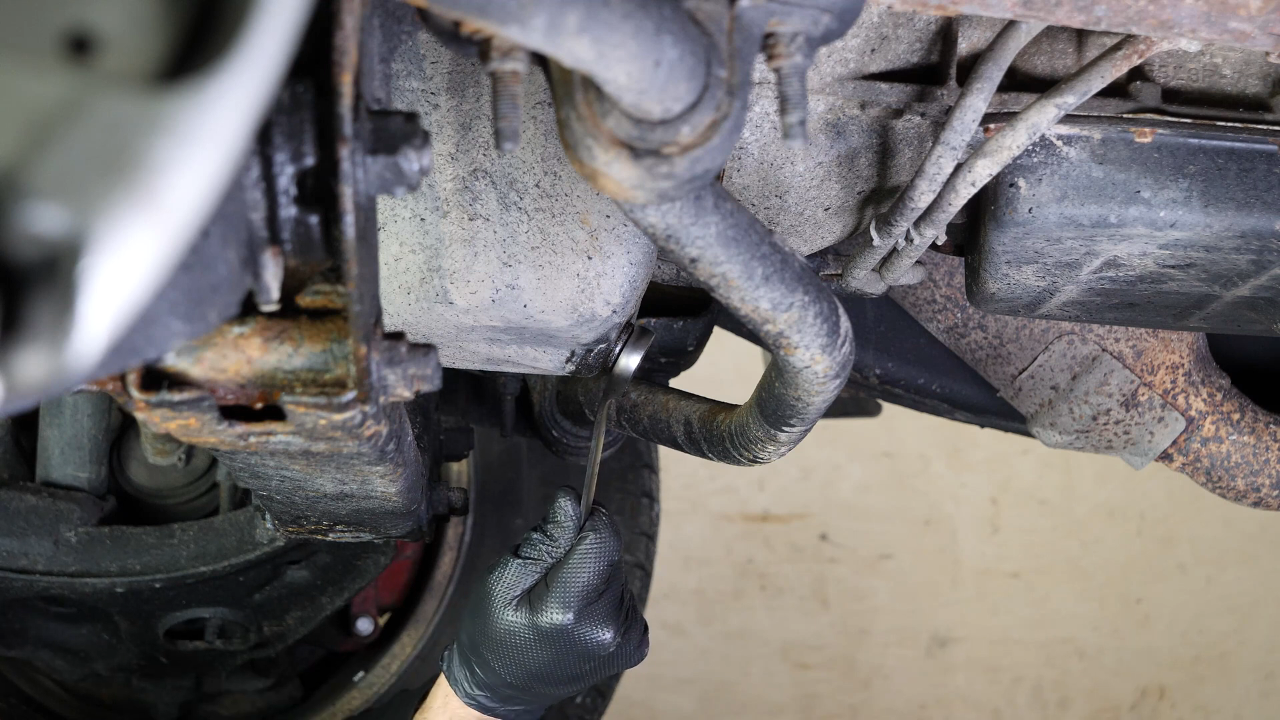

You can now see the drain plug. Unscrew the drain plug with the help of a 16mm wrench. Start the process with the wrench, and finish it off by hand. Be careful on the last few turns, the oil can squirt suddenly.

Chapter 5:

Step 2/2

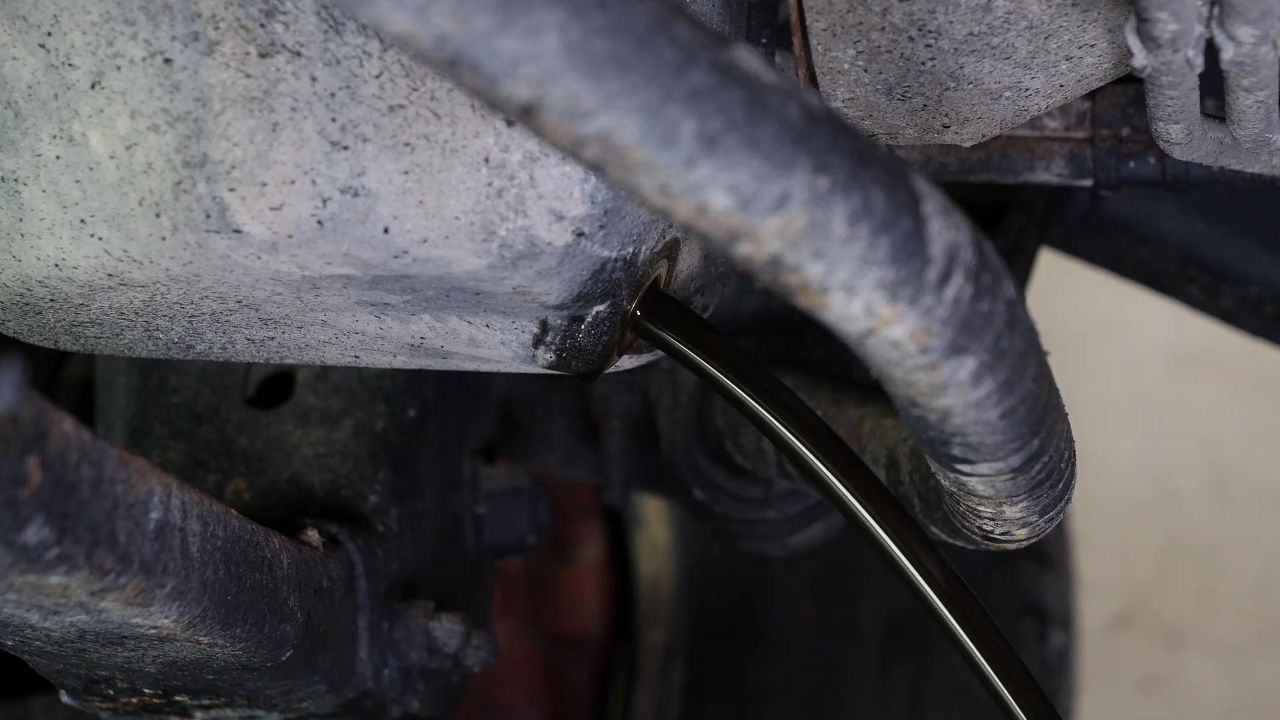

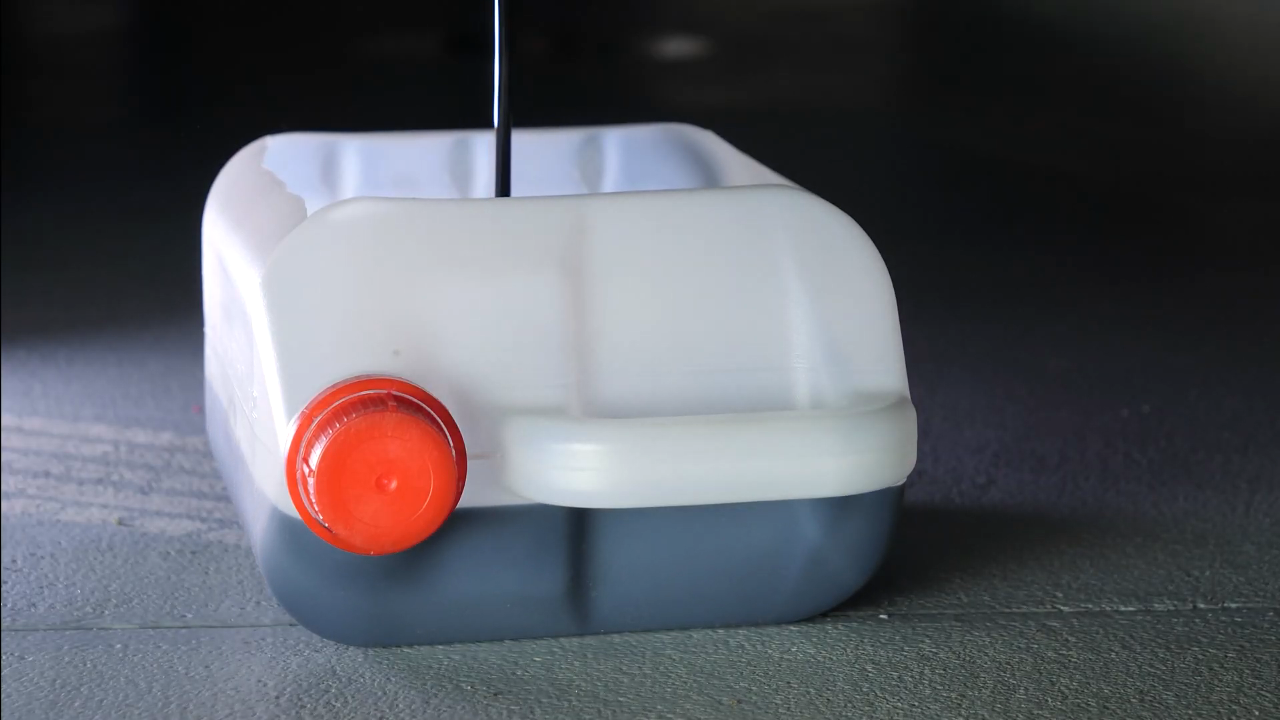

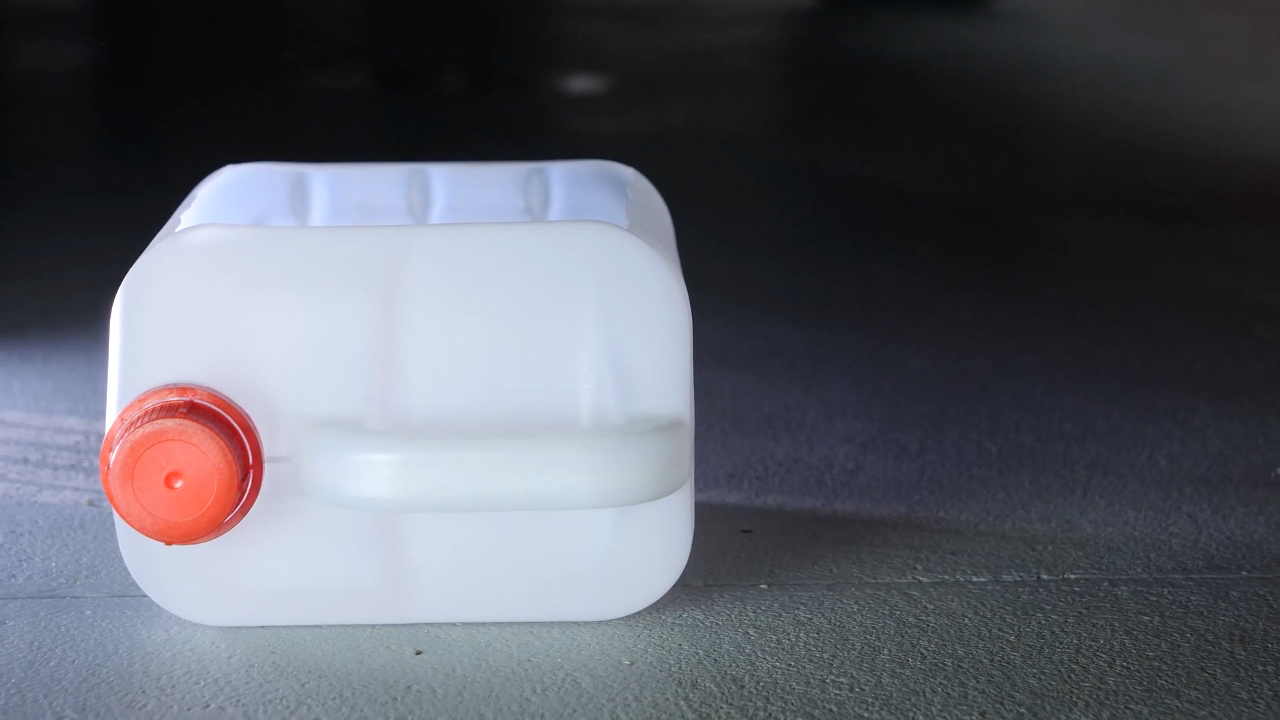

You will have to anticipate this, making sure you have an oil collector on hand. Let the oil run out for about 10 minutes.

Chapter 6:

Remove the oil filter

Step 1/4

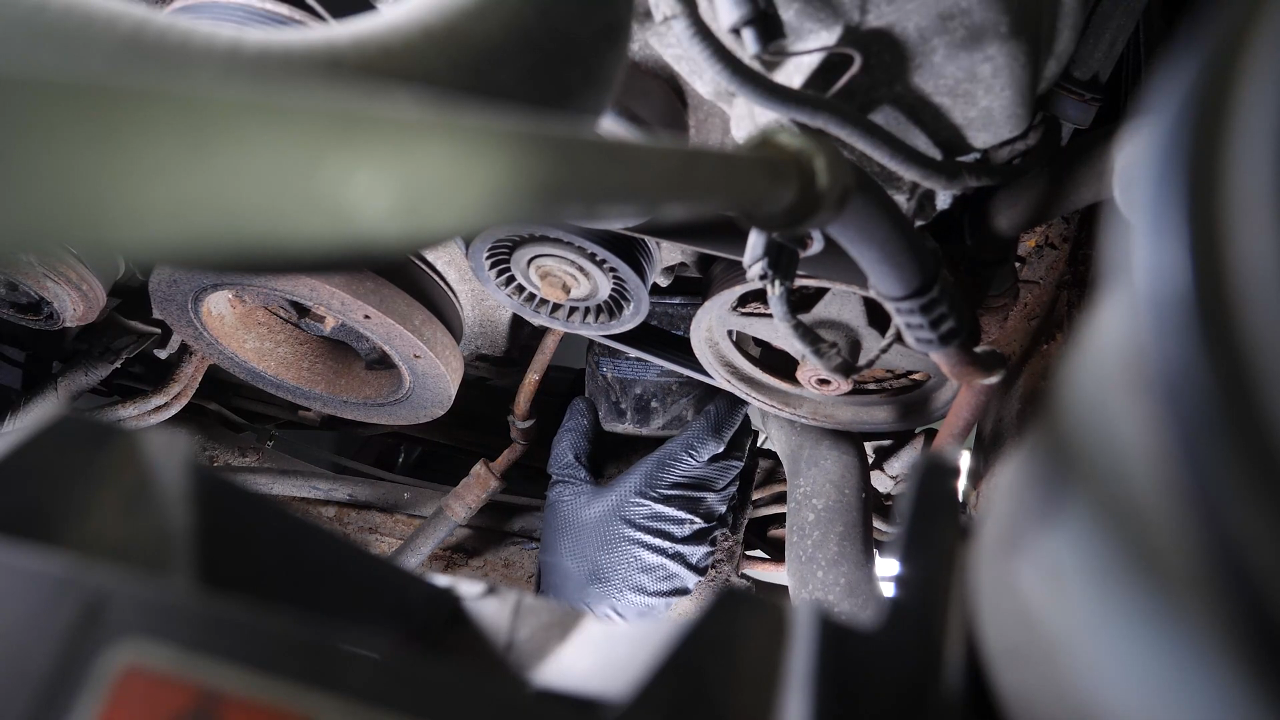

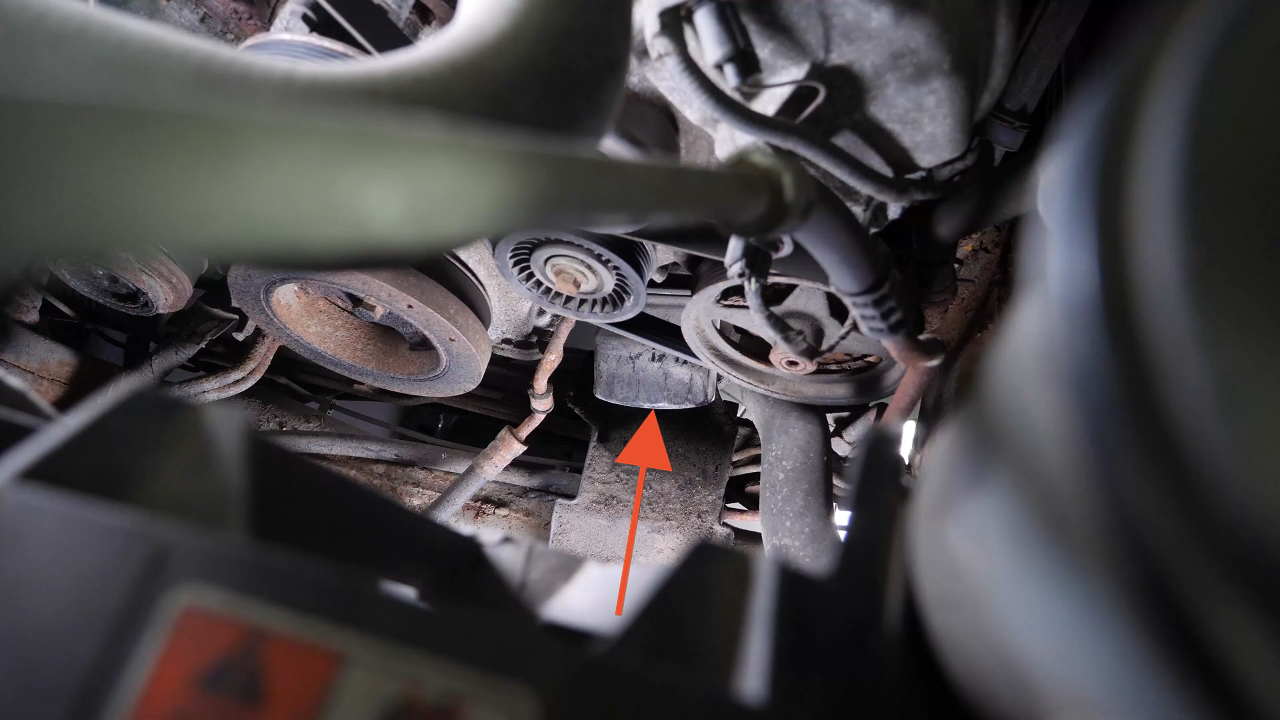

When you change the the oil, you should also replace the oil filter. The oil filter is accessed from below, beneath the serpentine belt.

Chapter 6:

Step 2/4

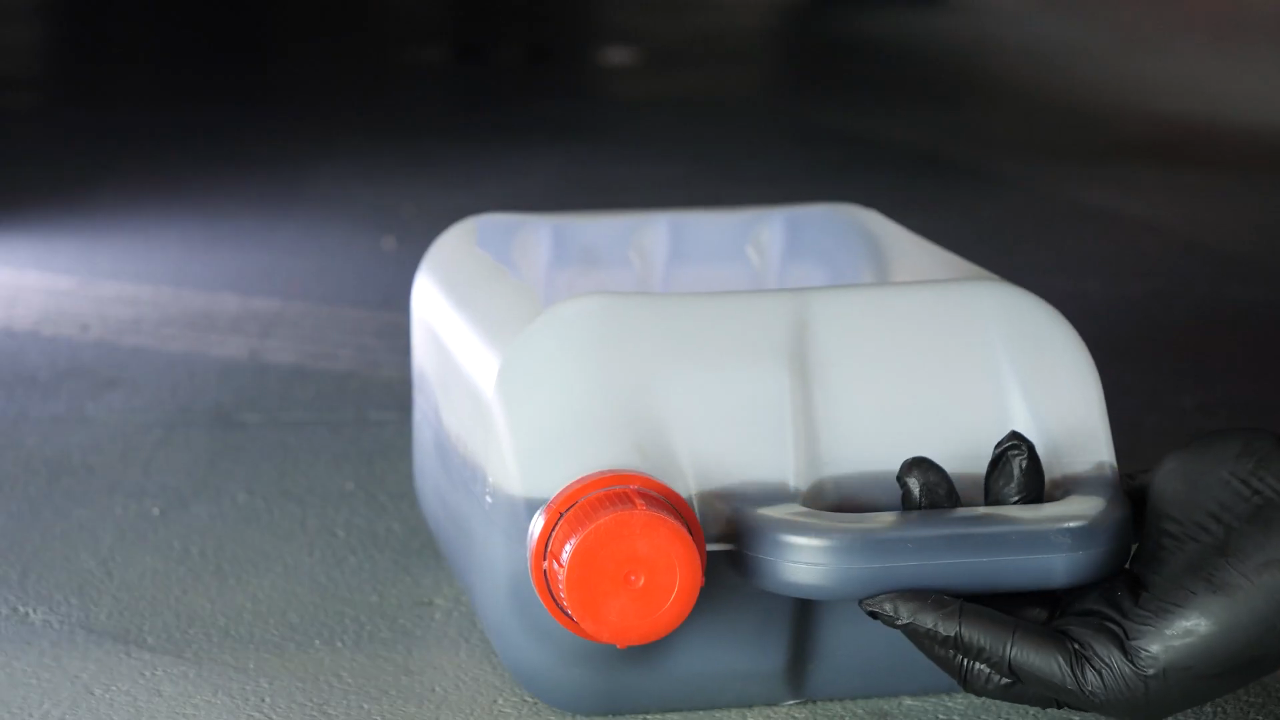

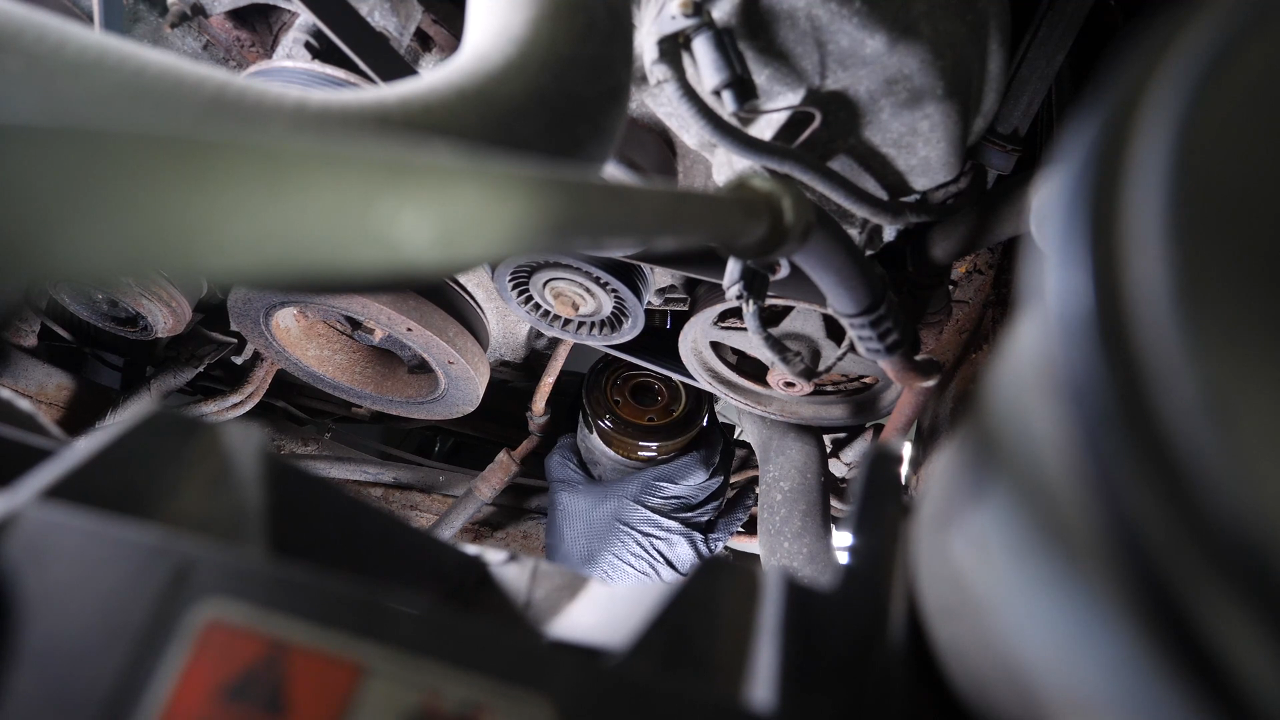

To collect the oil contained in the filter that might come out when it is removed place an oil collector underneath. Loosen the oil filter. If you are unable to do this by hand, you can loosen it with an oil filter wrench and an extender. Finish unscrewing the cap by hand. Remove the oil filter.

Chapter 6:

Step 3/4

When released, turn it upwards to avoid spilling any oil.

Chapter 6:

Step 4/4

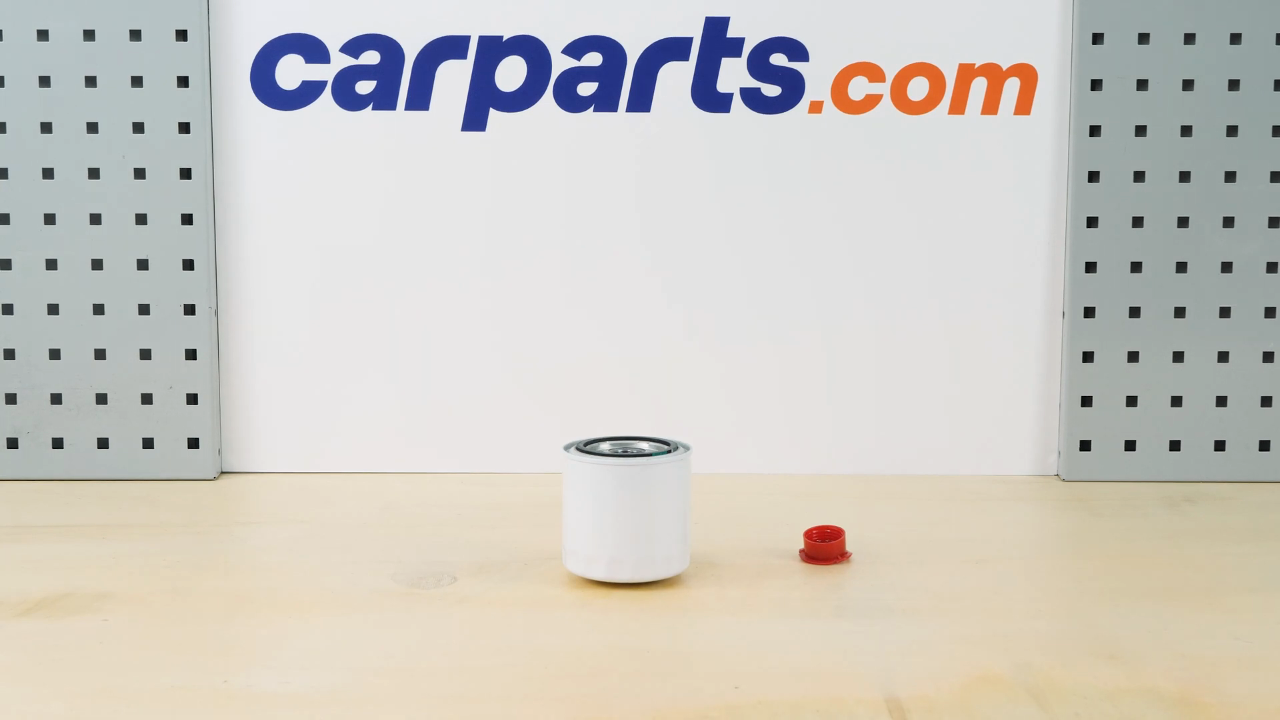

You can order the parts and products used in the video on the Carparts.com website via the link in the description.

Chapter 7:

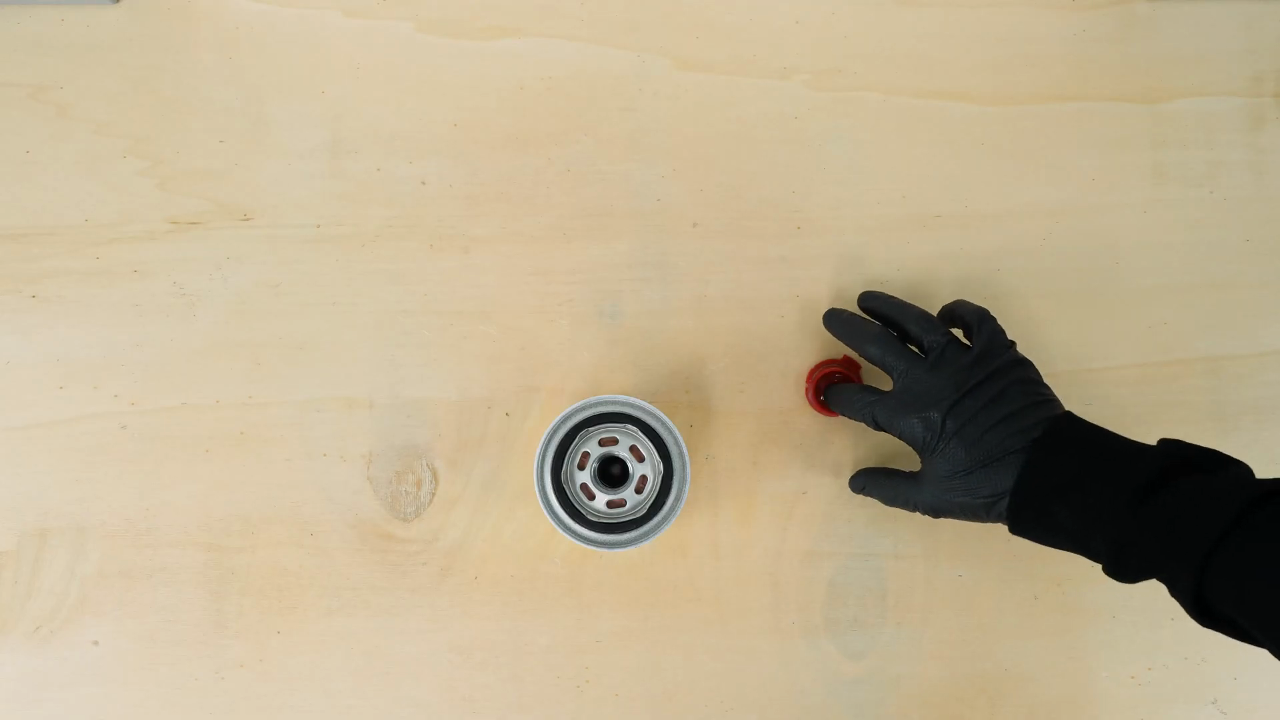

Prepare the oil filter

Step 1/1

Take the new filter. Lightly coat the seal with oil on the screwed side. This will avoid too much friction, which can reduce the seal’s watertightness. It also makes it easier to assemble.

Chapter 8:

Reinstall the oil filter

Step 1/1

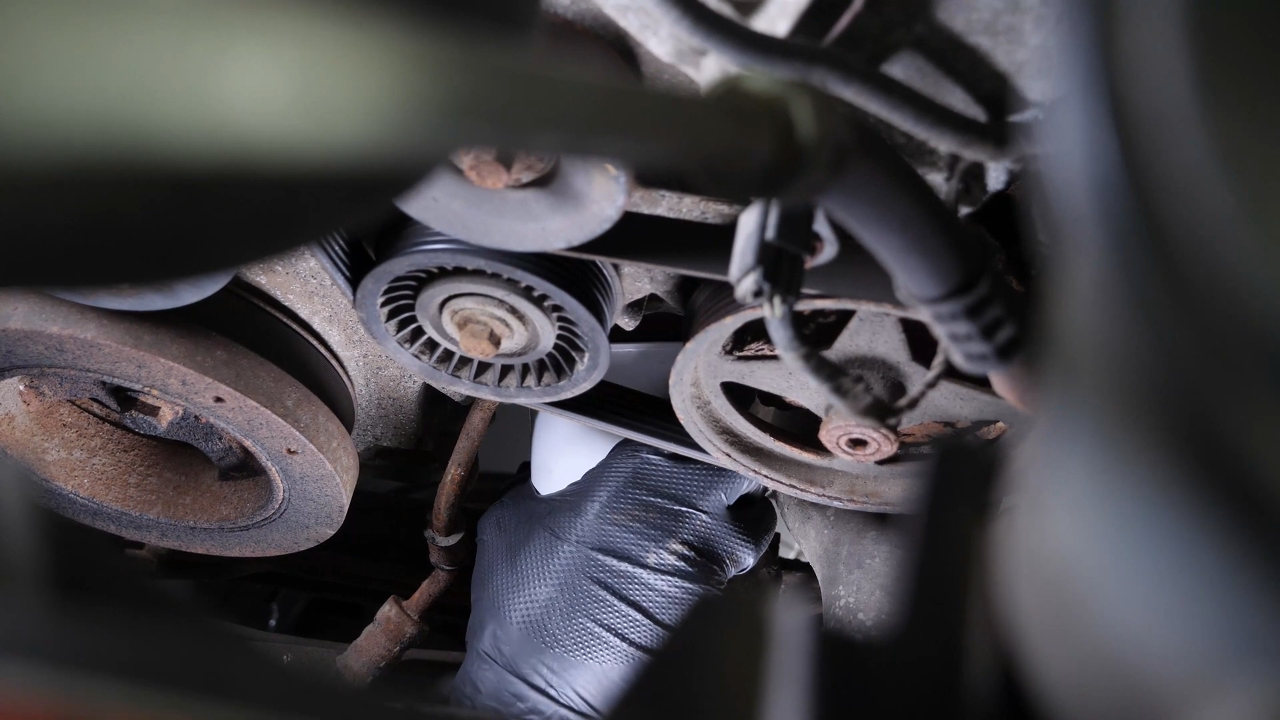

Screw the filter back on until it makes contact. At this point, grasp it with your full hand, and add half a turn of tightening.

Chapter 9:

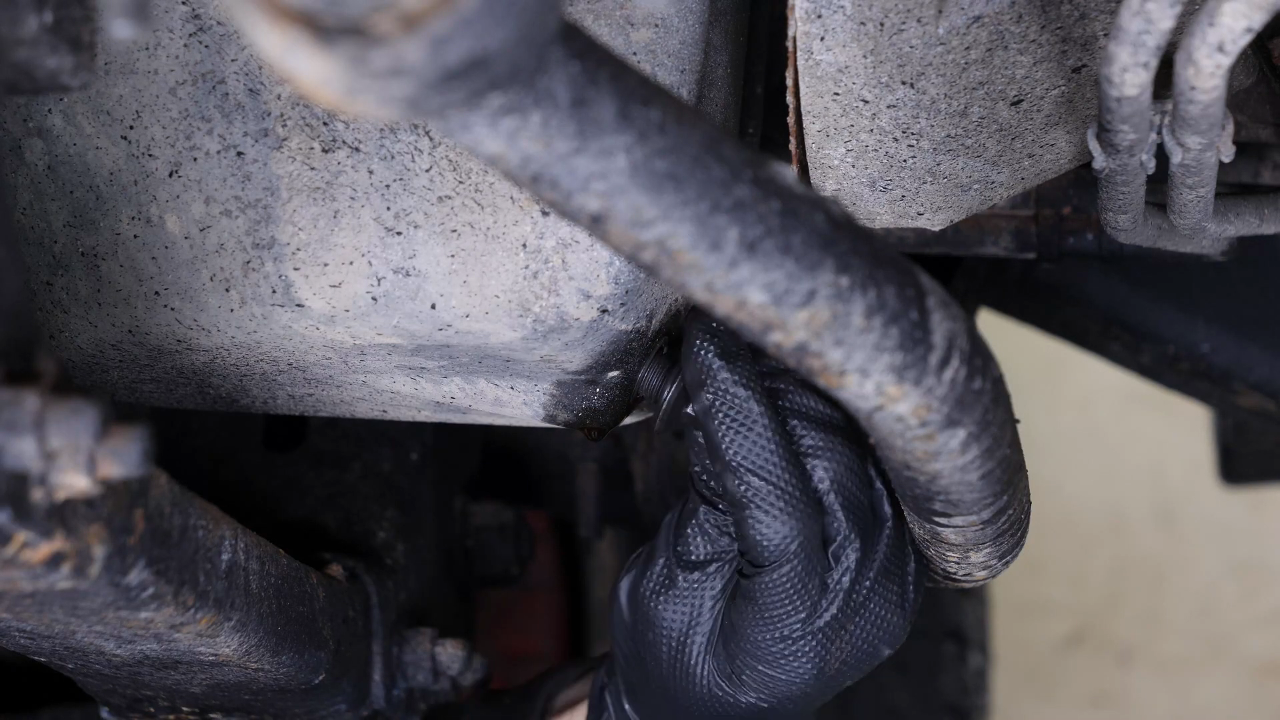

Install the new drain plug

Step 1/1

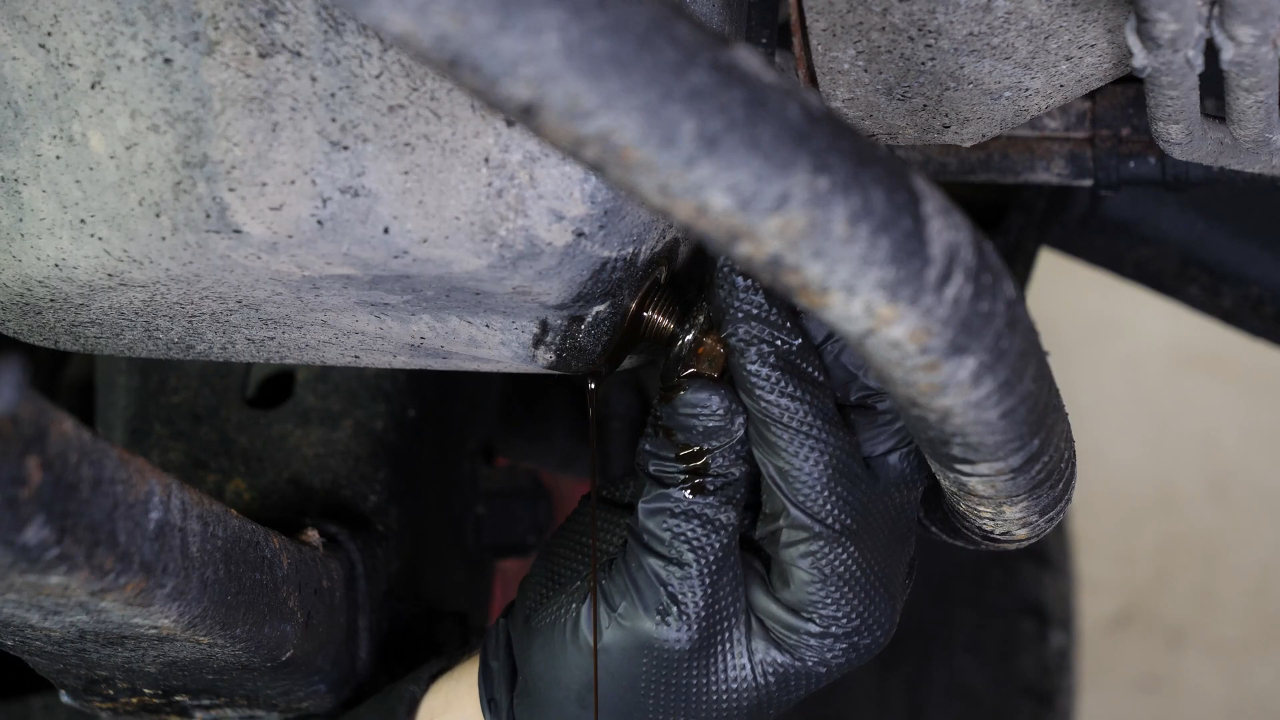

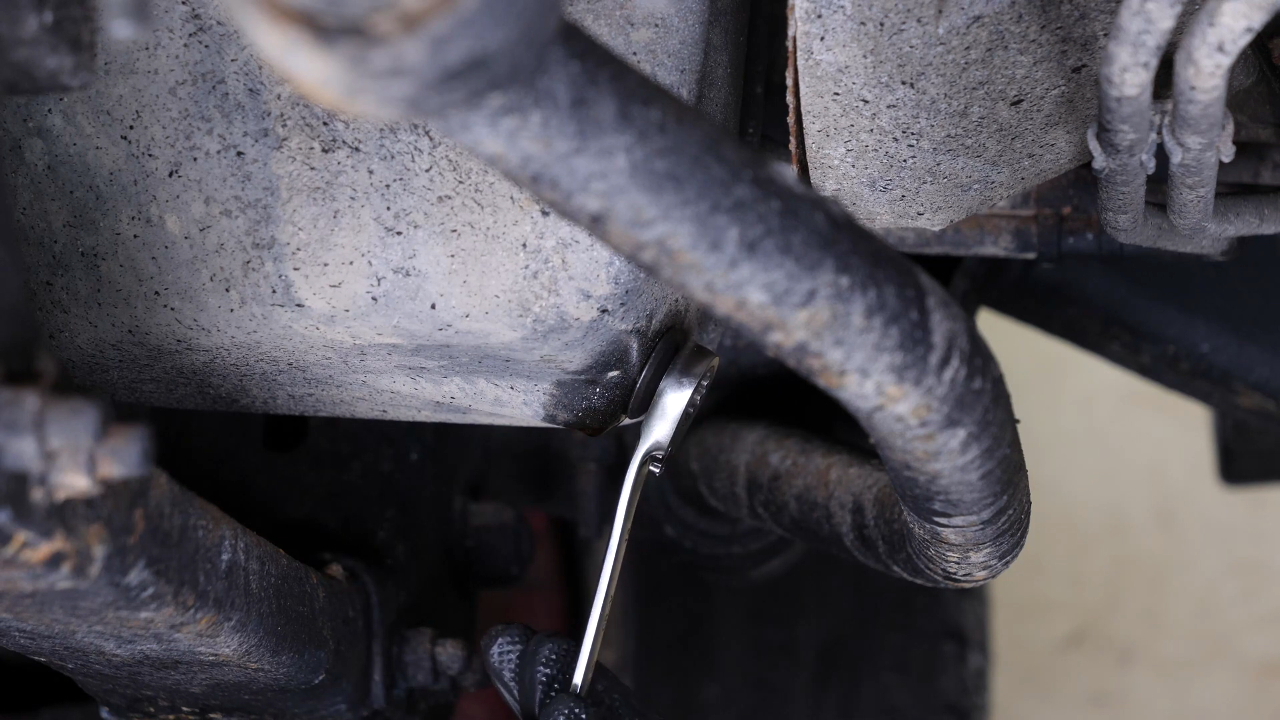

Replace the drain plug with a new one, then screw the plug back in. Start by hand, then finish off using a wrench, without being too forceful of course.

Chapter 10:

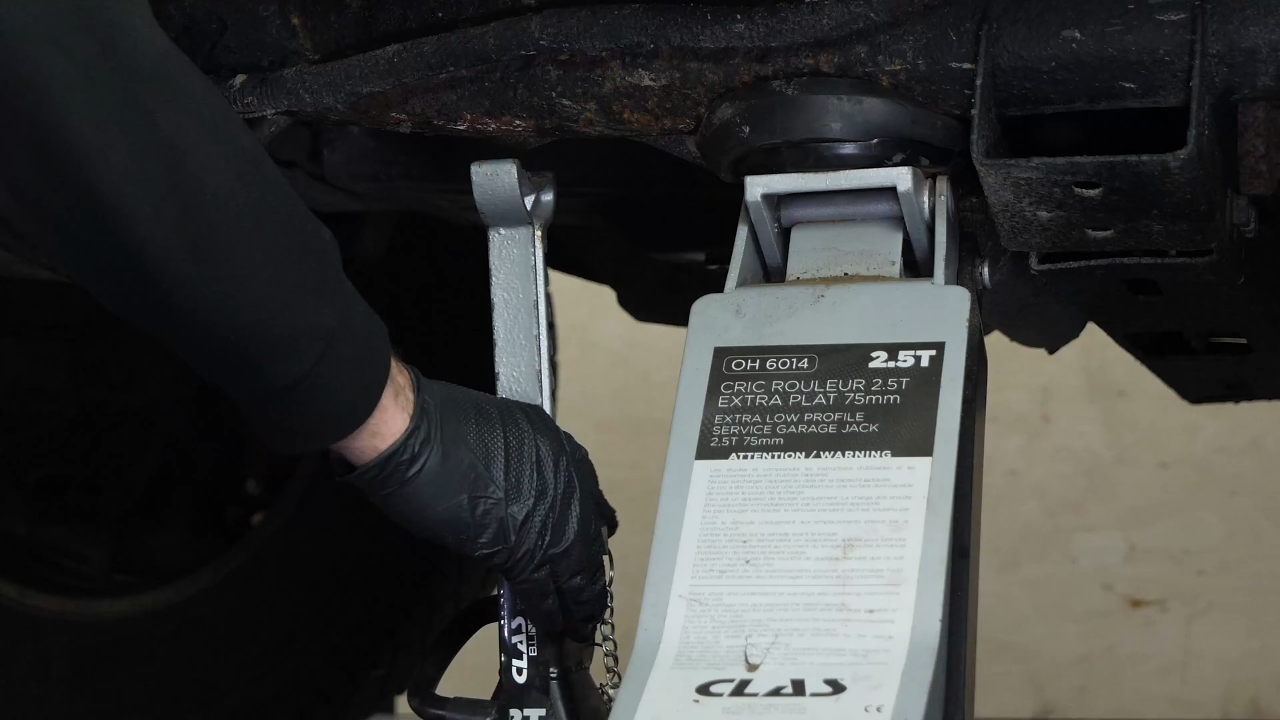

Put the vehicle back on the ground

Step 1/1

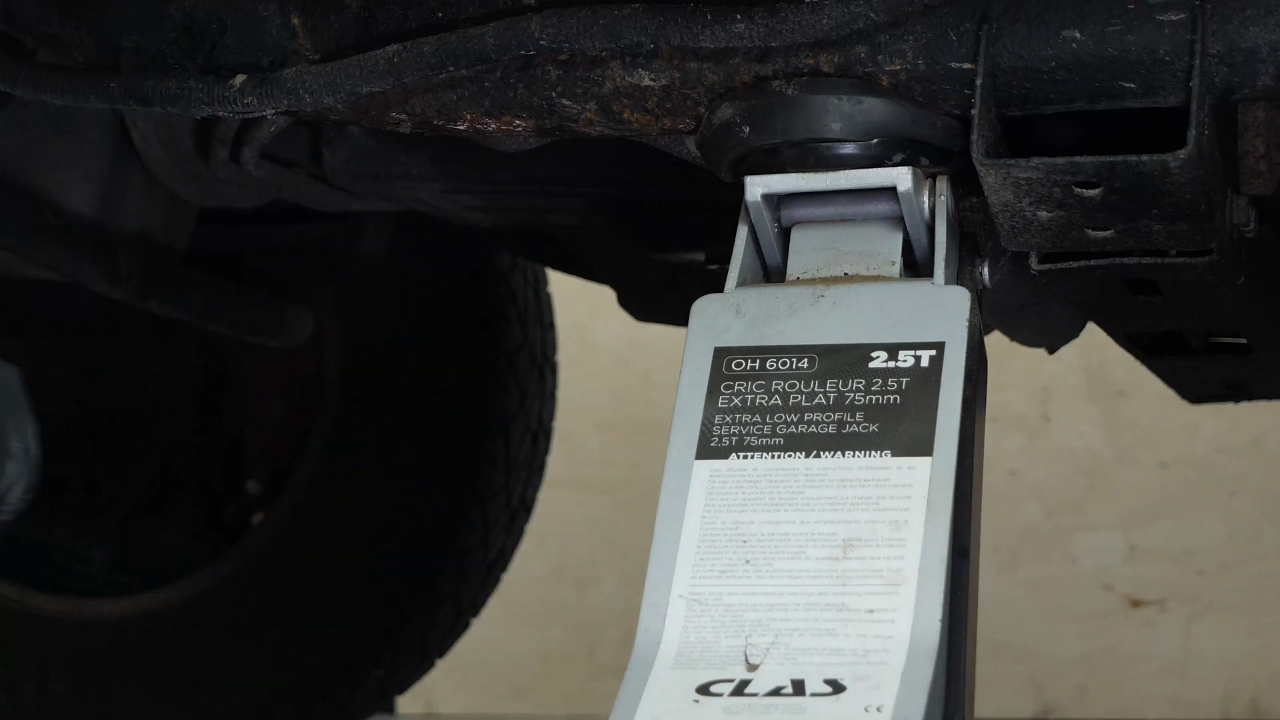

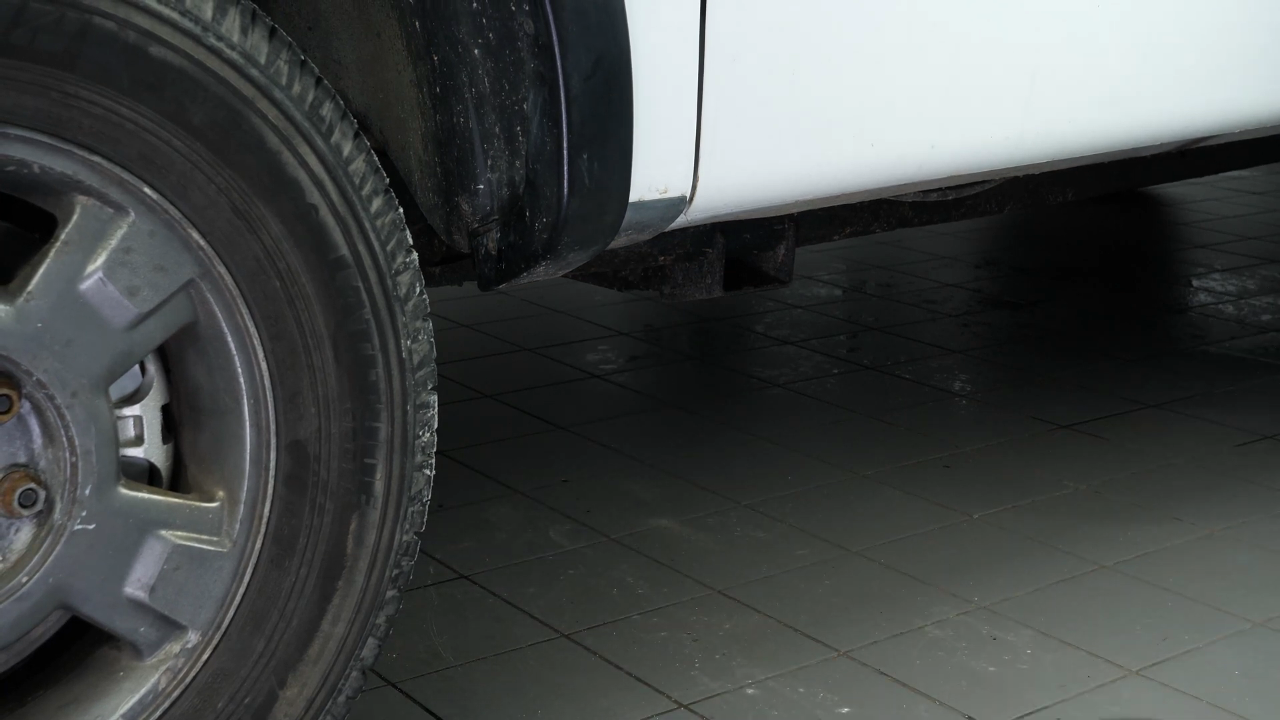

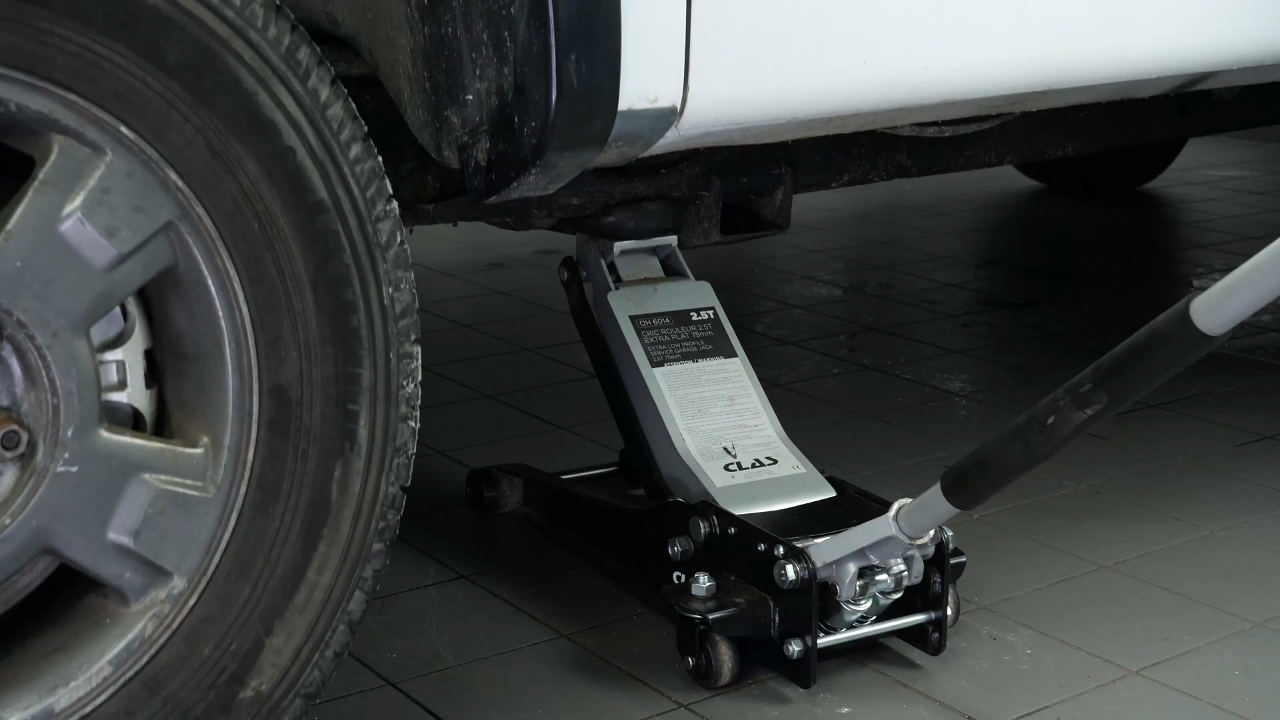

It is necessary to pour oil back into the motor at this point. This step must be done with care and precision. Put the skid plate back in place first, then lower your car back to the ground and check the oil level. This is something that can only be done when the vehicle is flat.

Chapter 11:

Pour oil back into the motor

Step 1/2

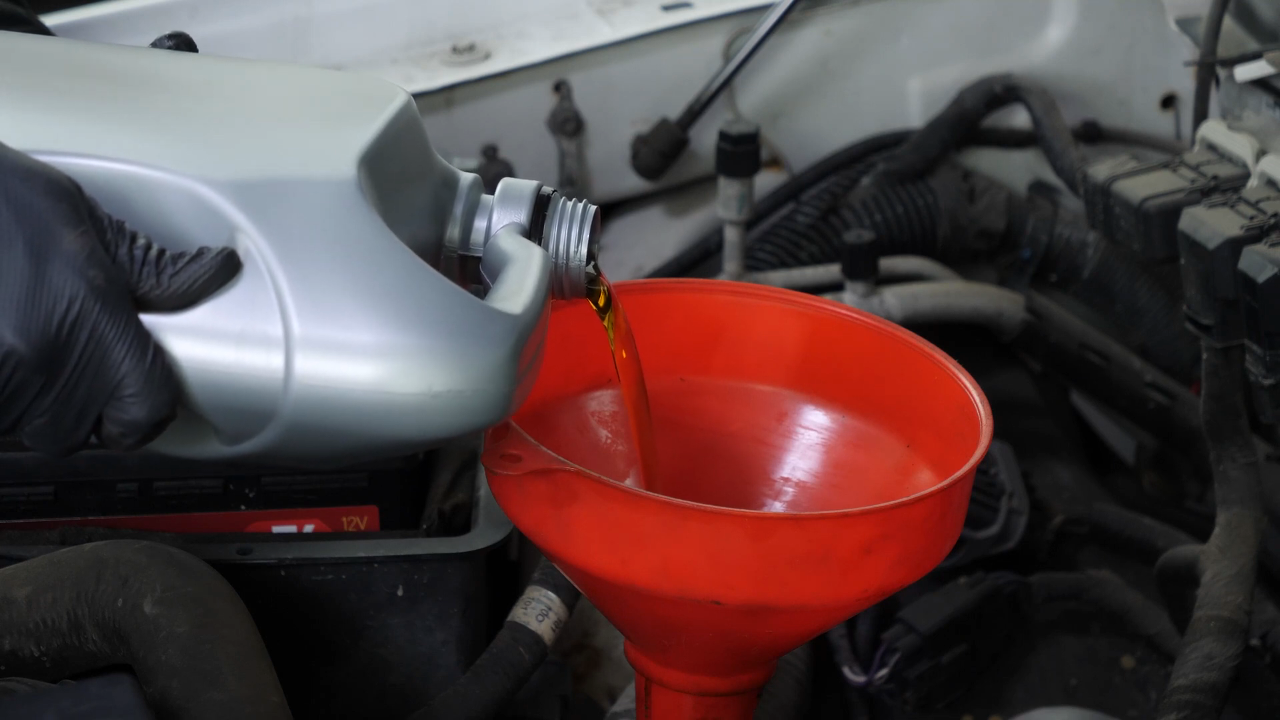

It is then necessary to add the oil to the engine. Begin by putting 90% of the suggested amount, this will leave you a large enough margin to adjust the level of oil appropriately.

Chapter 11:

Step 2/2

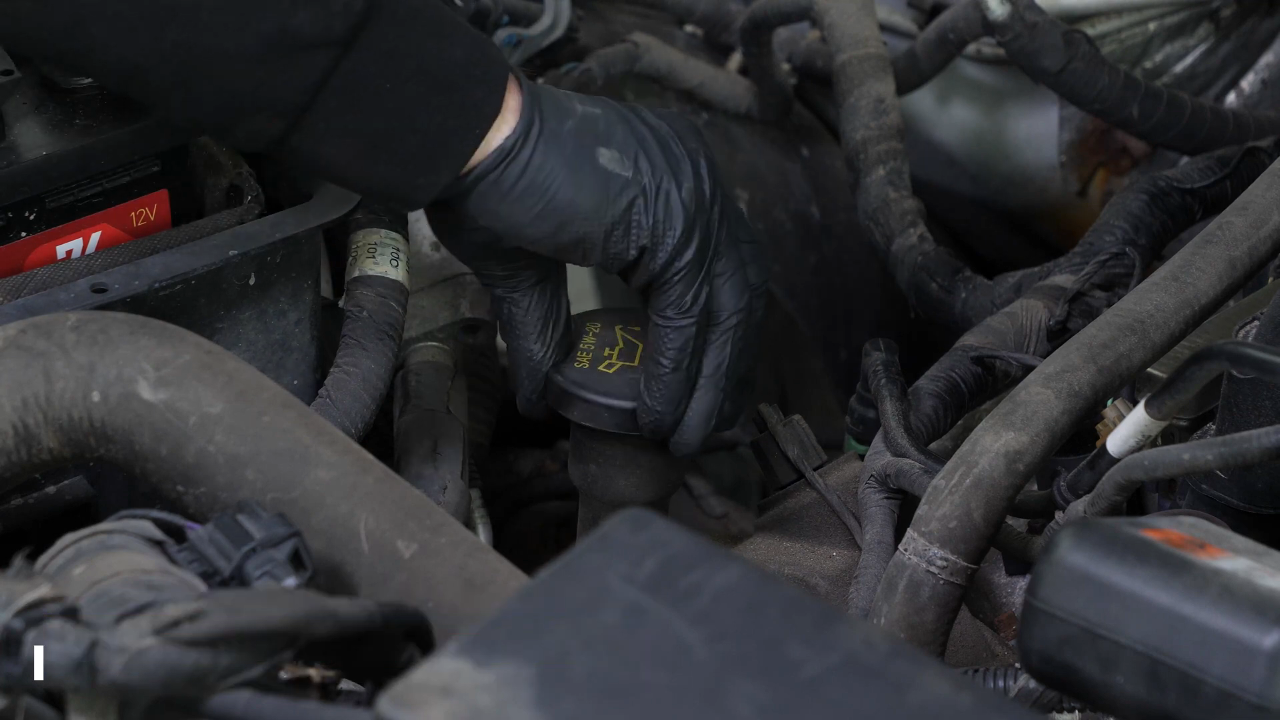

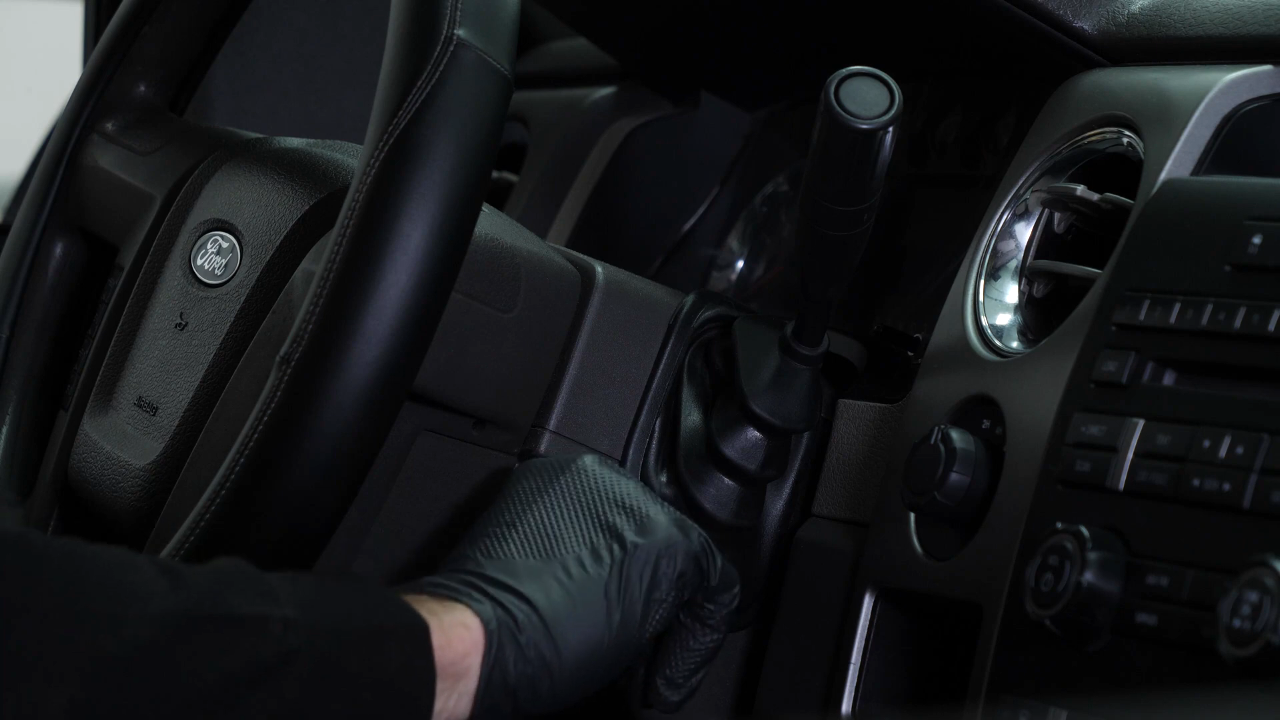

Close the oil fill plug, start the engine and let the car run for thirty seconds. This will fill the oil filter.

Chapter 12:

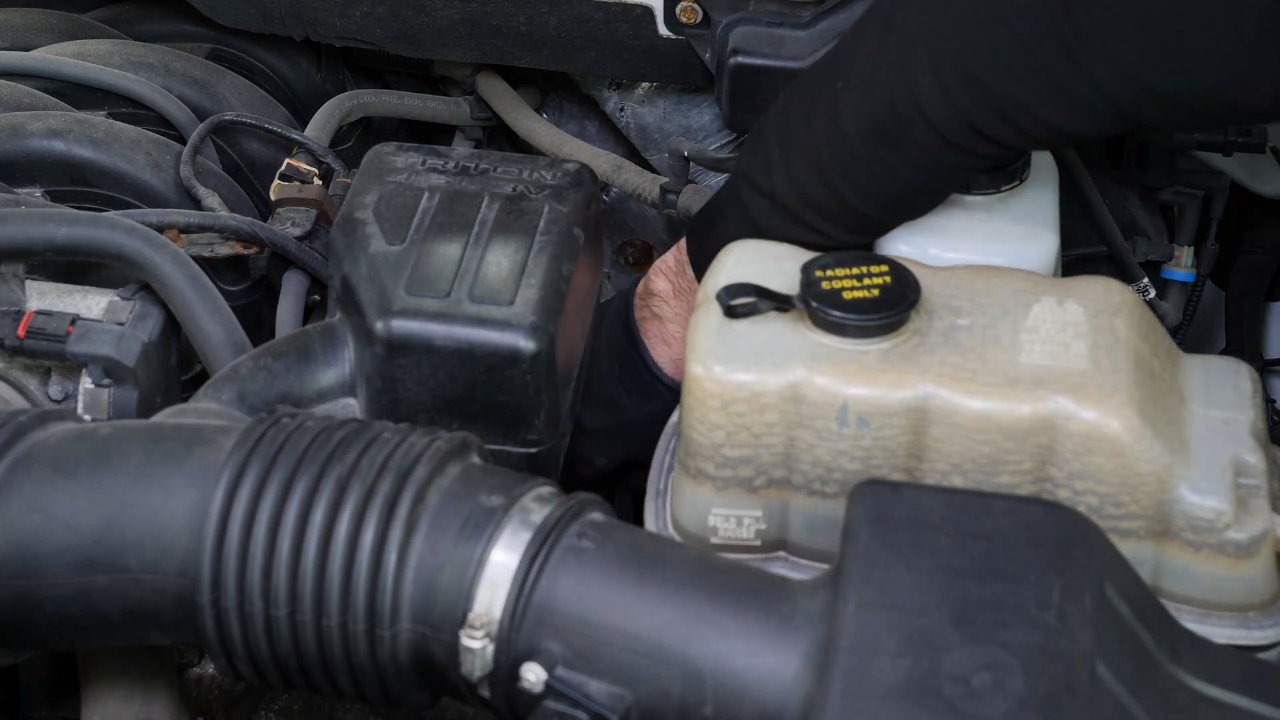

Check the oil level

Step 1/3

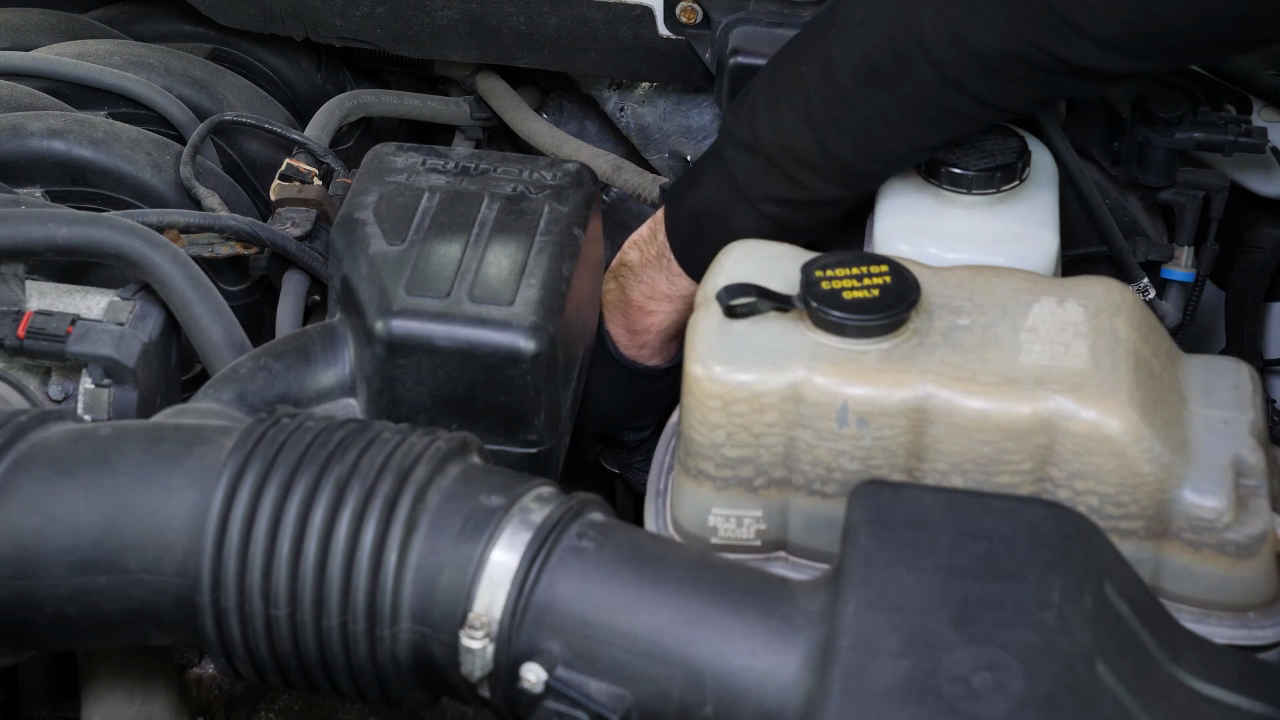

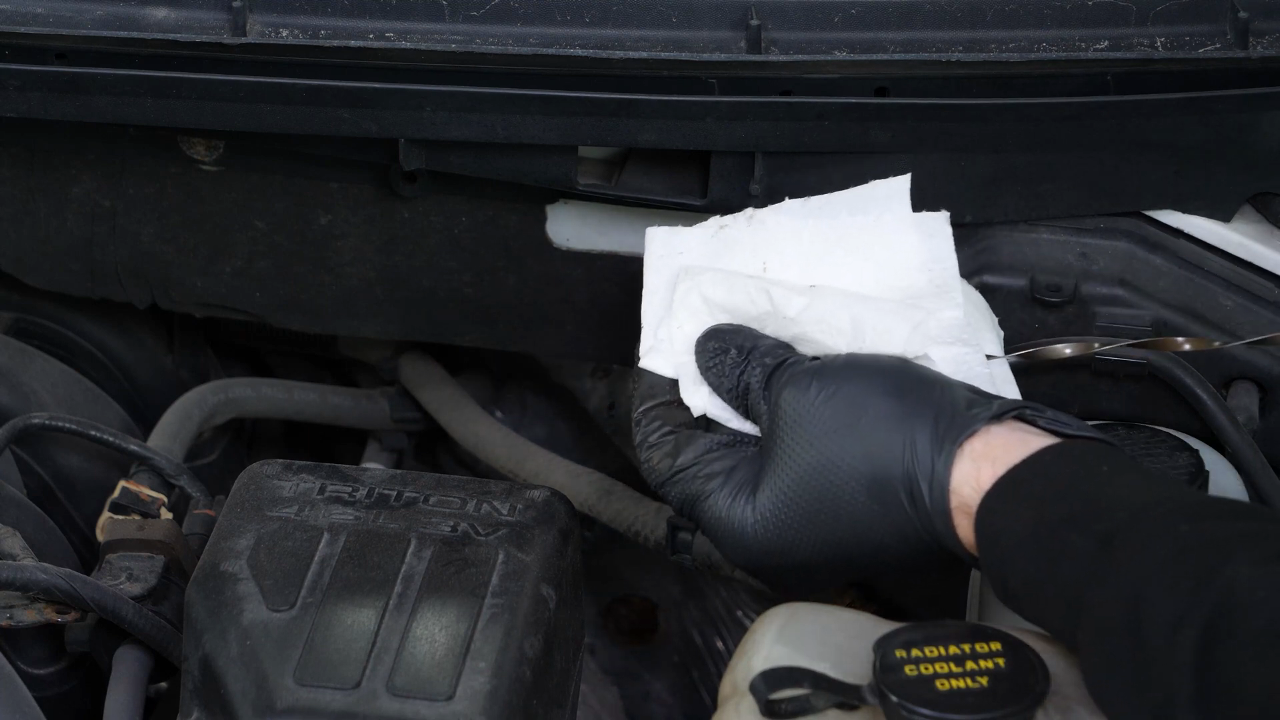

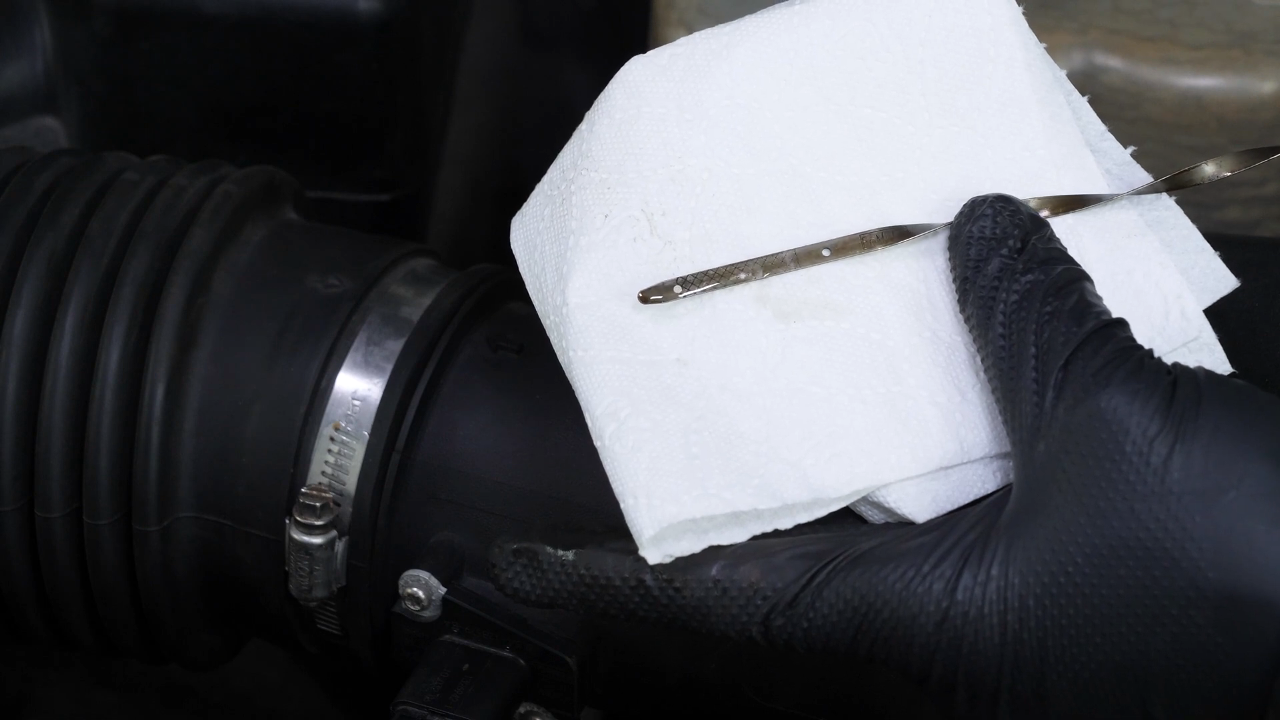

Remove the oil gauge and wipe it down. Plunge it back into its sheath, remove it again and check the oil level.

Chapter 12:

Step 2/3

The optimal level is near the maximum, but be careful to never go over it! Based on the level indicated on the gauge, readjust to obtain the optimum amount.

Chapter 12:

Step 3/3

Operation completed!
