The powertrain control module (PCM) stores the trouble code P0462 when it detects a possible issue with the fuel level sensor circuit. Find out this code’s definition, symptoms, and causes with this brief guide.
What Does the P0462 Code Mean?
Diagnostic trouble code (DTC) P0462 stands for “Fuel Level Sensor “A” Circuit Low .” The PCM stores this code when it detects an irrational input signal from the fuel level sensor (FLS). The PCM may also set this code when it determines that the input signal from the fuel level sensor does not match the expected values.

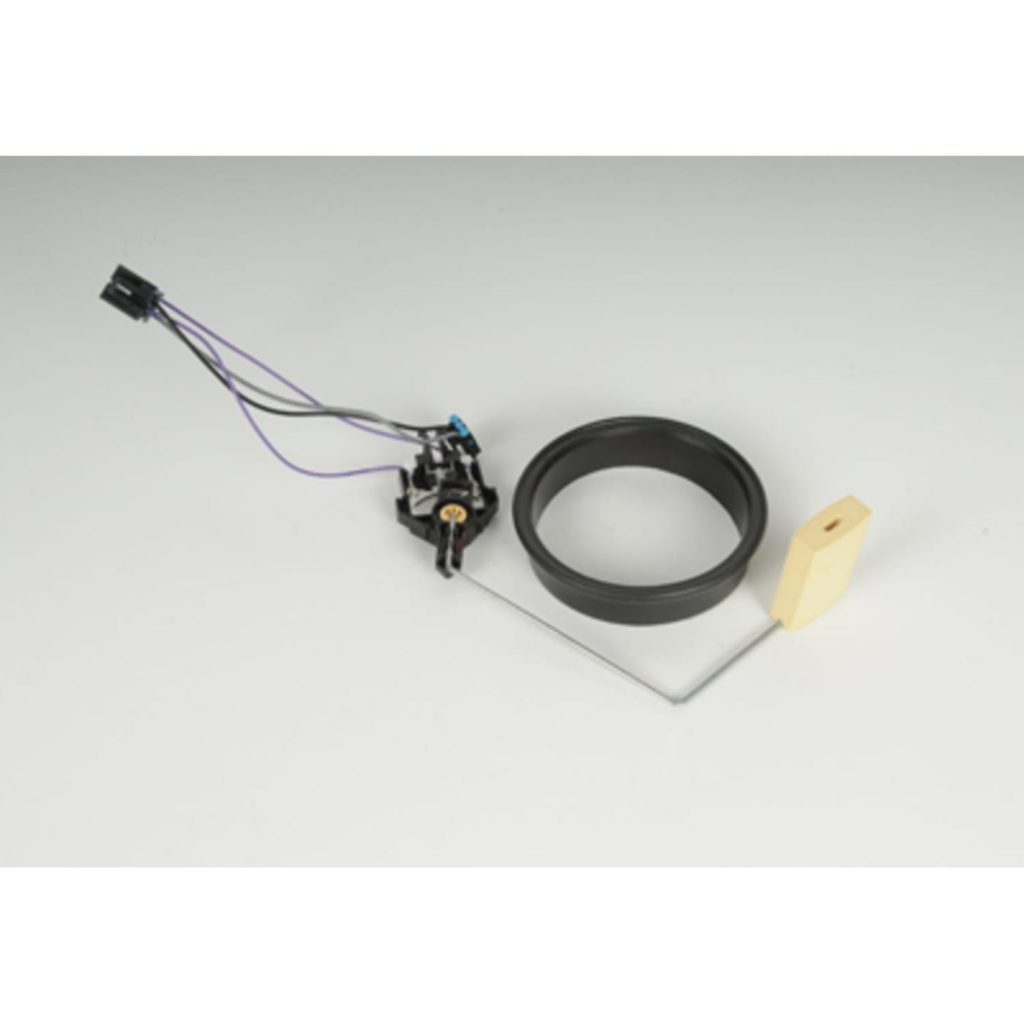

A fuel level sensor is used to monitor the fuel level inside the fuel tank. This component is typically mounted at the top of the fuel tank or the fuel pump module.
Again, the fuel level sensor is made of three major components. The first component is an oval-shaped ball made of foam or metal called a float. The float bobs up and down depending on the level of fuel inside the tank. The float connects to the resistor via a thin metal strip called an actuating rod. When the float drops according to the fuel level, this rod moves a wiper-like attachment across the resistive material on the resistor. This movement changes the amount of current flowing to the fuel gauge, which in turn changes the fuel level reading.
In some vehicles, the fuel level sensor sends fuel level data to a combination meter that transmits the signal to the PCM via a data network. The PCM then uses the fuel level sensor input to determine how much fuel is in the fuel tank and to monitor fuel economy as well.
You can read our technical discussion about how fuel level sensors work if you’re researching how to fix P0462 yourself.
Note: The definition of code P0462 may be different depending on the vehicle manufacturer. Consult the appropriate repair manual or repair database for the exact code definition.
What Are the Possible Causes of the P0462 Code?
There are several possible issues that can trigger trouble codes. Listed below are some of the possible reasons why the P0462 code sets:
- Fuel pump malfunction (the sensor is often integrated into the pump)
- Fuel level sensor failure
- Wiring issues, such as short to ground in the signal circuit to the FLS sensor
- PCM malfunction (rare)
What are the Common Symptoms of the P0462 Code?
While many trouble codes only exhibit an active malfunction indicator light, the P0462 code may manifest other symptoms. Below are some of the most common symptoms of P0462:
- Malfunction indicator lamp (MIL) or check engine light on
- Diminished perceived fuel economy
- Unreliable/inaccurate fuel gauge reading
How to Diagnose the P0462 Code
Trouble code diagnosis is a time-consuming task that demands thoroughness and accuracy. The P0462 code has several possible causes, and you need to narrow down the root cause in order to find an effective solution. Misdiagnosis is a possibility that should be avoided because costly mistakes and personal injury may happen as a result.
This is why it’s very important to obtain a reliable source of repair information. If you’re planning to troubleshoot P0462 yourself or if you want to understand the issue better, you should consult a vehicle-specific repair manual or database. Repair manuals and databases have detailed repair instructions, illustrations, and diagrams that make P0462 diagnosis a more manageable job.
How to Fix the P0462 Code
The fact that vehicles are built differently depending on the manufacturer makes trouble code diagnosis and repair a bit more challenging. Components, definitions, setting conditions, and possible causes differ by make. This means that there is no universal fix to a trouble code like P0462.
For example, the possible causes listed for the P0462 on 2012 Mazda 3 S vehicles include fuel gauge and instrument cluster failure. Meanwhile, the list of likely causes for the P0462 on 2012 Nissan Frontier SL units include harness or connector failure in the CAN communication line or the sensor circuit.
If you’re a seasoned DIYer, vehicle-specific repair manuals and databases may ease the P0462 code troubleshooting process. With a repair manual, you’ll be able to find specific repair procedures to address the P0462 on your Ford vehicle, for example. However, if you’re not familiar with trouble code repairs, it’s best to consult a mechanic or technician to avoid personal injury and damage to your vehicle.
Other Notes About P0462
Typically, the P0462 code is not treated as severe. However, this level of seriousness still depends on the exact root cause of the issue. In any case, it’s important to address trouble codes immediately to prevent worse damage or more expensive repairs down the line.
Some related trouble codes to the P0462 include:
- P0460 – Fuel Level Sensor Circuit Malfunction
- P0461 – Fuel Level Sensor Circuit Range/Performance
- P0463 – Fuel Level Sensor Circuit High Input
- P0464 – Fuel Level Sensor Circuit Intermittent
