Encountering an unfamiliar trouble code may seem intimidating, but finding out what it means is an important step towards solving the issue. This guide will help you understand the meaning of the P0450 code, as well as its possible causes and common symptoms, so that you can troubleshoot it as soon as possible.
What Does the P0450 Code Mean?
Diagnostic trouble code (DTC) P0450 stands for “Evaporative Emission System Pressure Sensor/Switch.” This code may be set when the vehicle’s powertrain control module (PCM) detects that the signal from the evaporative pressure sensor is below the specified value.
The evaporative emission (EVAP) system prevents fuel vapors from escaping into the atmosphere by storing excess fuel vapors in a charcoal canister or a vented reservoir. The EVAP system uses the engine vacuum to draw fuel vapors from the canister or reservoir into the intake manifold of the engine, where they can be burned as part of the normal combustion process.
The PCM monitors the EVAP system and electronically controls the purge control valve or solenoid based in part on data from the EVAP pressure sensor. This sensor tracks pressure changes in the fuel storage or EVAP system and sends this information to the PCM. If the EVAP pressure sensor’s signal doesn’t fall within the expected range, the PCM may set the P0450 code.
For more information that can help you address P0450, read our technical discussion about how the EVAP system maintains adequate purge flow.
Note: The definition of code P0450 may be different depending on the vehicle manufacturer. Consult the appropriate repair manual or repair database for the exact code definition.
What are the Possible Causes of the P0450 Code?
Like other trouble codes, the P0450 engine code has several possible causes. Below are some of them:
- Defective EVAP pressure sensor
- EVAP control system pressure sensor circuit problems, such as damaged wires and loose connections
- An issue with the PCM, such as software in need of an update
What are the Common Symptoms of the P0450 Code?
The P0450 code doesn’t usually affect the engine’s drivability, so you may not be able to observe any noticeable symptoms beside an illuminated check engine light.
How to Diagnose the P0450 Code
The first step in fixing any trouble code is determining the root cause of the problem. The P0450 code has several possible causes, so you may need the expertise of a seasoned mechanic or technician to get to the bottom of things.
However, if you want to do your own research and learn more about the P0450 engine code, there are a few resources that explain this code’s diagnostic and repair procedures in more detail.
The following video demonstrates what the diagnostic process might involve:
How to Fix the P0450 Code
Many trouble codes may share the same symptoms, probable causes, and affected areas, but that doesn’t mean that there’s a single fix for everything. As mentioned above, you need to determine the root cause of the issue before you can fix the P0450 code. Aside from that, you also need to determine the prescribed repair procedure for your specific vehicle.
Luckily, there are a lot of auto repair resources and guides that can help you figure out the right fix. Vehicle-specific repair manuals, in particular, are great resources because they have detailed repair information for your vehicle’s exact make and model. They also have illustrations and diagrams to help you locate parts and understand the issue better.
Just note that if you’re not familiar with OBD-II repairs, it may be best to leave the job to a mechanic, so that you can avoid problems and more expensive repairs down the line.
Other Notes About P0450
As mentioned above, the P0450 doesn’t usually affect the engine’s drivability, so it’s not considered a severe code. Even so, you may need to have your vehicle checked by a licensed professional, so that you can avoid problems down the line.
Aside from the P0450 engine code, there are also other evaporative emissions trouble codes. Some of these include P0451, P0452, P0453, P0454, P0455, P0456, P0457, P0458, and P0459.

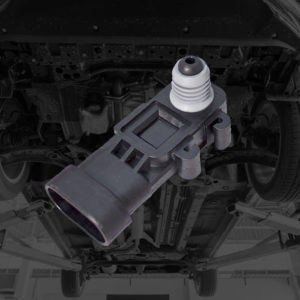

Where to Get a New EVAP Sensor for Your Ride
Dealing with a triggered P0450 code can cause headaches, especially if you’re unsure where to find a replacement EVAP pressure sensor to resolve it. The great news is that you don’t need to go through the trouble of searching for a high-quality replacement in auto parts shops. After all, we’ve got you covered here at CarParts.com.
Our extensive inventory includes top-notch parts from trusted manufacturers, guaranteeing reliability and compatibility with your vehicle. To start shopping, simply input your car’s year, make, and model into our vehicle selector to browse compatible EVAP sensors. You can also filter your search according to the brand, price, and specs you prefer.
At CarParts.com, we prioritize efficiency and customer satisfaction. With strategically located warehouses across the country and on-hand products, you can expect fast shipping. Should you have any questions or need assistance, our dedicated support team is available round-the-clock via our toll-free hotline.
Check out our selection now and get a new EVAP pressure sensor today!
