P0101 Code: Mass or Volume Air Flow ‘A’ Circuit Range/Performance

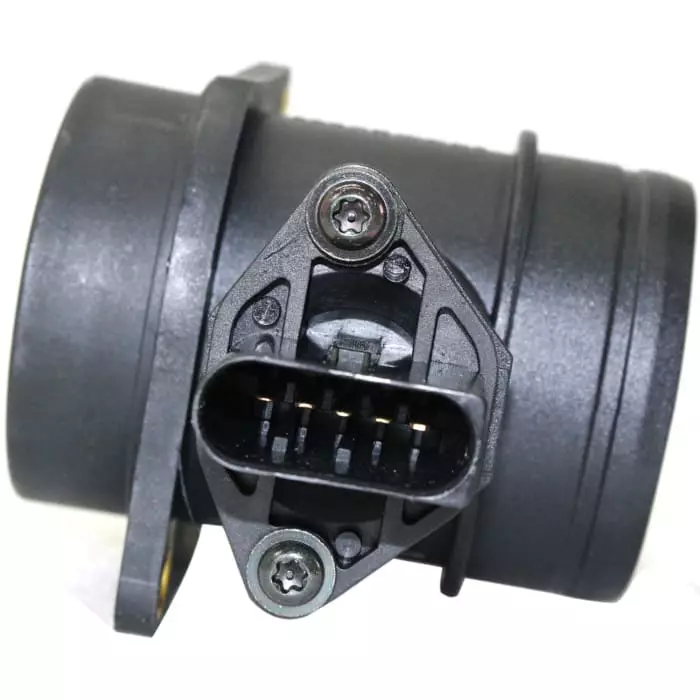

The mass airflow (MAF) sensor is a device that is mounted on the air intake. Its job is to measure the density and, therefore, the volume of filtered air that is drawn into the engine. When the PCM perceives the sensor or its circuit is malfunctioning, OBD-II code P0101 is triggered.

What Does the P0101 Code Mean?

Diagnostic trouble code (DTC) P0101 code stands for “Mass or Volume Air Flow ‘A’ Circuit Range/Performance.” This is logged by onboard diagnostics when the MAF sensor relays readings that are either irrational or out of range.

P0101 belongs to a range of trouble codes (P0100 to P0104) that refer to a MAF circuit malfunction. This is a generic error code that is supported by a variety of vehicles manufactured from 1996 onwards.

While symptoms may be similar among different vehicles, diagnosis and repair may vary depending on make and model.

For a technical understanding of MAF sensors, you may read our discussion about MAF and MAP sensors.

Continue reading to learn the most likely causes of code P0101.

P0101 on Some Chevrolet Vehicles

Code P0101 may appear on some Chevrolet vehicles, including on a 2005 Chevrolet Silverado 1500 5.3L V8.

DTC P0101 is set when the PCM detects that the actual MAF sensor frequency signal is not within a predetermined range of the calculated MAF value for more than 4 seconds.

Conditions for running the P0101 code include:

• DTCs P0068, P0102, P0103, P0106, P0107, P0108, P0120, P0220, P0442, P0443, P0446, P0449, P0452, P0453, P0455, P0496, P2135 are not set.
• The engine is cranking or running.
• The ignition 1 signal is between 11–18 volts.
• The throttle position (TP) indicated angle is less than 95 percent.
• The change in the TP indicated angle is less than 5 percent.
• The MAP sensor is less than 80 kPa.
• The change in the MAP sensor is less than 3 kPa.
• The above conditions are met for 1.5 seconds.
• DTC P0101 runs continuously when the above conditions are met.

What are the Possible Causes of the P0101 Code?

• Defective MAF sensor
• Problem with the MAF sensor circuit
• Dirt build-up on the MAF sensor wire or filament
• Vacuum leak
• Issues with a sensor (e.g., throttle position sensor or engine coolant temperature sensor)
• PCM malfunction

What are the Common Symptoms of the P0101 Code?

Check Engine Light is on or blinking

A wide variety of OBD-II codes may cause the Check Engine Light to illuminate. The first step in verifying if your vehicle is experiencing a MAF sensor circuit malfunction is to connect your vehicle to a scan tool or code reader.

Reduced power on acceleration

A malfunctioning MAF sensor/circuit may cause your engine to hesitate, jerk, and produce reduced power during acceleration. This issue is usually most noticeable while the engine is under heavy load, going uphill, or while driving at highway speeds.

It’s important to have your vehicle checked by a licensed mechanic as soon as you experience any jerking or hesitation during acceleration as this could become a significant driving hazard on the road.

Idling issues

Rough idling is a common sign that your engine’s air/fuel mixture is thrown off. The root cause could be an issue with the MAF.

Black smoke emissions from the tailpipe

Dark smoke emitted from the exhaust indicates that the engine is running too rich. This means that too much fuel is delivered to the combustion chambers and not enough air is getting in.

Reduced fuel mileage

Inaccurate readings from the MAF sensor will result in difficulty in achieving the proper air-to-fuel mixture in the engine. If you’re driving the same distance and under the same conditions but notice that you’re refilling your tank more often than usual, there’s a chance that your engine is burning more fuel than it needs to operate.

How to Diagnose the P0101 Code

From an issue in the MAF sensor circuit to a vacuum leak, the P0101 code can be triggered by various issues. It’s no wonder identifying its exact cause can be quite a challenge, especially for the average DIYer.

Fortunately, there is no shortage of helpful resources online. Here’s a helpful video that will give you an idea of what the diagnostic process involves:

How to Fix the P0101 Code

Like other OBD-II codes, resolving the P0101 code can be a complicated affair. How to fix it does not just depend on its underlying cause. It’s also based on the vehicle’s make, model, and year.

For instance, there are two confirmed ways to fix a 2004 Chevrolet Silverado 1500 that’s affected by the P0101 code. One is to replace the intake manifold gasket and the other is to replace or clean the MAF sensor. These solutions may not work as well for other makes and models, such as a Nissan Rogue or a Toyota Tundra.

Because of these considerations, a lot of people leave fixing OBD-II codes to their trusted mechanics. However, that doesn’t mean that you can’t diagnose and fix the issue yourself, especially if you have the necessary automotive knowledge and DIY skills for the task.

Use online auto repair resources and guides and check your owner’s manual to figure out how to resolve the issue.

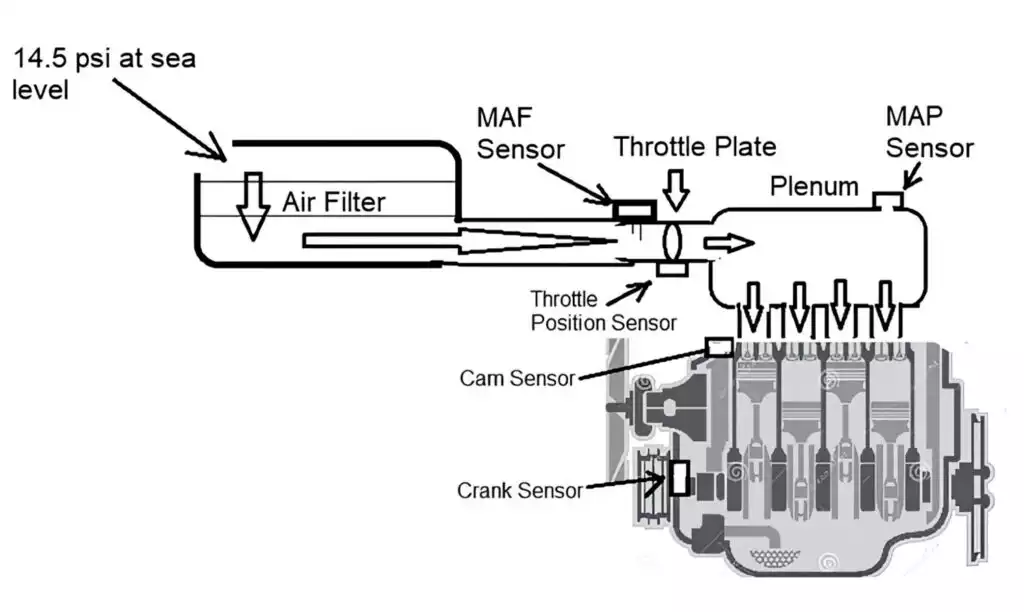

A Closer Look at MAF and MAP sensors

In order for fuel Injection systems to work right, the engine controller (ECM/PCM) can use the speed-density method to determine fuel delivery, which requires a manifold absolute pressure (MAP) sensor input. Low vacuum (higher pressure) in the intake indicates the amount of engine load, thus the ECM/PCM controls the pulse width to deliver the proper amount of fuel for the engine to do its work.

Another measurement that is more commonly used on newer vehicles is to measure incoming air mass (mass airflow) and air temperature as the primary fuel delivery input. This is more accurate than manifold pressure.

Pro Tips are nuggets of information direct from ASE-certified automobile technicians working with CarParts.com, which may include unique, personal insights based on their years of experience working in the automotive industry. These can help you make more informed decisions about your car.

Pro Tip: That being said, many vehicles now have both MAF and MAP for various reasons, but the MAF is the dominant input unless it fails, and then MAP can be used. MAP can also help determine EGR flow, since manifold pressure increases when EGR is flowing.

Some early fuel injection systems had a spring-loaded vane plate connected to a potentiometer internal to the unit so that as the airflow increased, the vane moved the potentiometer to a higher voltage. This was called “vane airflow” and was used for a long time, even after mass airflow sensors appeared in the mid-80s on GM vehicles.

Most MAF sensors use a “hot wire” measuring method – the sensor feeds a platinum wire enough voltage to keep it at a certain temperature higher than ambient (say, 300 C). These usually have a cold wire for temperature comparison.

As air flows past this hot wire, the unit maintains the hot wire temperature above the cold wire temperature with additional voltage, which it uses to provide airflow information to the ECM/PCM.

MAF sensors typically either provide a frequency signal or a voltage signal, depending on the design.

Some Asian vehicles use a sonic type MAF sensor where there is a tiny speaker that sends a high frequency sonic signal to a receiver on the opposite side of the airflow passage, and the deflection of the sound provides input to the ECM/PCM indicating airflow.
