Summary
  • A wheel stud is a large bolt protruding from the wheel hub that fastens the wheel to your vehicle.
  • The symptoms of a broken wheel stud include rust, damaged threads, and missing or incorrect lug nuts.
  • One of the most common causes of broken wheel studs is installing the lug nut incorrectly.
  • Avoid driving with a broken wheel stud to protect other studs from getting broken.
  • A single wheel stud can range from $10 to $180.
  • To replace a broken wheel stud by yourself, you’ll have to prepare the necessary materials, remove the wheel, and use C-clamps to fully seat the stud. Don’t forcibly remove the broken stud with a hammer.

Wheel studs, together with lug nuts, are key parts of your vehicle’s suspension system that keep the wheels secured to your vehicle. Because of this, it’s important to look for any signs of a broken wheel stud and address them right away.

What Is a Wheel Stud?

A wheel stud, also called wheel lug stud, is a large bolt protruding from the wheel hub, where it sticks out beyond the brake rotor hat. It usually has a ribbed neck, a threaded shaft, and a smooth body. Pressed into the wheel’s hole, it gives the lug nuts something to hold onto to keep the wheels secure.

Unlike wheel bolts, wheel studs stay in place when you remove your car’s tire. This makes it convenient as you don’t have to worry about realigning everything after a tire change.

Symptoms of a Broken Wheel Stud

Because wheel studs keep your wheels in place, it’s important to know the signs of a bad or broken wheel stud. Here are some symptoms to look out for:

See also  Tire and Wheel Care Must-Haves for Every Car Owner

Rusty Wheel Studs

Most studs are made from stainless steel, but constant exposure to salt and water can still cause oxidation to occur.  Rusty studs can make it hard to install lug nuts, and forcibly removing them can damage both the studs and nuts. Because of this, it’s best to replace your rusty wheel studs as soon as possible.

Damaged Threads

A broken wheel stud can be caused by a damaged thread pattern. As a pair, wheel studs and lug nuts have similar thread patterns that allow them to lock in place together.

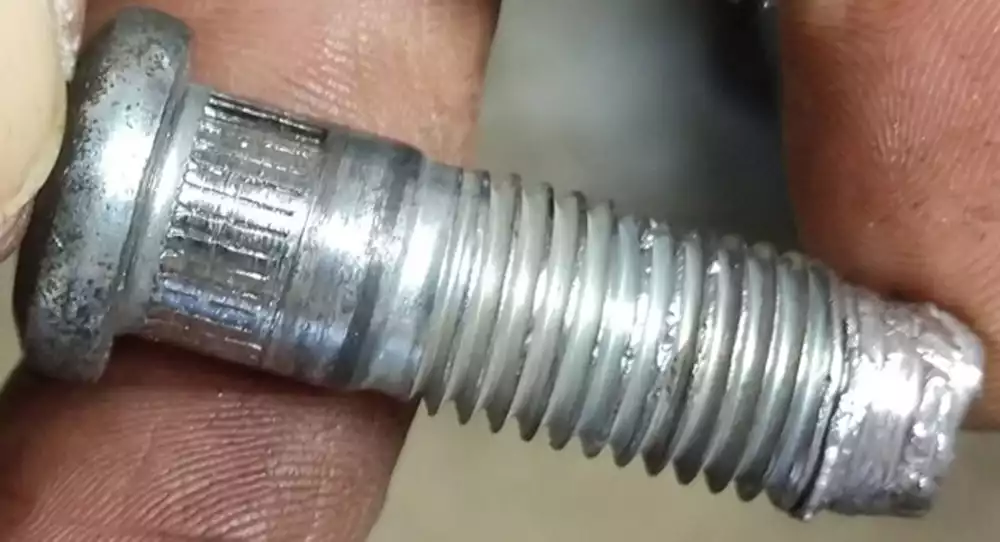

stud with damaged threads wont match with its paired lug nut
A stud with damaged threads won’t match with its paired lug nut, and forcibly locking them together can cause further damage such as you see in the photo. This stud spun in the wheel hub and removing it was very difficult. | Image Source: Richard McCuistian

Missing  or Incorrect Lug Nuts

If you notice a lug nut missing from your wheel, then a broken lug nut stud is likely to blame.

But using the wrong lug nut for the wheel can be a factor as well. Tapered lug nuts don’t all have the same angle, and using lug nuts with the wrong angle will just about always cause the wheel to come off.

Tapered lug nuts don’t all have the same angle, and using lug nuts with the wrong angle will just about always cause the wheel to come off.

– Richard McCuistian, ASE Certified Master Automobile Technician

Whether it’s because of too much torque or stripped threads, a broken stud won’t be able to hold on to the lug nut, causing it to loosen up and slip off.

Broken Wheel Stud FAQ

What Causes Wheel Studs To Snap?

One of the most common reasons why wheel studs break is improper installation of the lug nut.

Overtightening the lug nuts with an impact wrench will begin to distort the threads on some lug nuts to the point that when you try to remove the lug nut, the stud either breaks off or begins to spin in the wheel hub, wiping out its splines. This doesn’t happen every time but it happens more often than you might think. The lug nut torque can be found online, and it’s best to follow the torque specs for the vehicle.

For example, a passenger car will usually require just under 100 lbs ft of torque, but a full size Ford or GM pickup will usually require 140 to 150 lbs ft. Over-tightening or under-tightening can both cause issues.

When fastening the lug nut onto the stud, it’s important to tighten the nut gradually and it’s wise to use a torque wrench if you have one.

Another common mistake people make is cleaning their studs with oil, grease, or lubricant. While this might seem like a good idea to prevent rust, it reduces friction and increases the chances of the nuts slipping off. Instead of using oil, simply clean and dry the studs and nuts with a wire brush.

Can You Drive With a Broken Wheel Stud?

Driving with a broken wheel stud is possible, but it’s definitely not a good idea. Most vehicles have four to five lug nut studs per wheel, so some people believe one broken wheel stud won’t be a serious problem. However, a single broken stud can be a sign of improper installation, which means it might not be long before the others start breaking too. It’s best to be cautious and avoid driving until you get a replacement.

What To Do If You Break a Wheel Stud?

Get a replacement. While you can buy studs on your own, consider having a professional replace them for you. A specific tool called a torque wrench is necessary when replacing wheel studs, and using any other tool can lead to cross threading and other issues in the future.

How To Replace a Broken Wheel Stud

It’s best to ask a mechanic to replace a broken stud for you, but if you feel confident in your skills, then you can certainly give it a try. Here are tips on how to replace a broken wheel stud:

Prepare the Necessary Tools

You’ll save yourself plenty of time later on by preparing everything you need beforehand. Prepare a socket or ratchet set, a C-clamp, a tie rod end remover, and a torque wrench to replace a broken wheel stud. Don’t forget to get lug nuts, steel washers, and wheel studs that fit your vehicle.

Remove the Wheel

Before you can remove the broken wheel stud, you’ll have to remove the wheel first. Park your vehicle on a flat surface where you can safely work on your repair, and engage the parking brake.

See also  Tire and Wheel Care Must-Haves for Every Car Owner

You can secure your car with a jack stand for extra safety, but if you only have one jack, place it under the vehicle near the wheel you’re working on.

Don’t Use a Hammer

After removing the wheel, it’s time to get rid of the broken wheel stud. Whatever you do, don’t try to hammer it out. Using a hammer can damage your wheel bearings. Instead, use a tie rod end remover to safely squeeze the stud out.

Use a Large C-Clamp

When installing the new wheel stud, be sure to align it with the lug holes before placing a large C-clamp over it. This should help seat the stud properly so that it’s flush with the back of the hub.

How Much Does It Cost To Replace a Broken Wheel Stud?

A single wheel stud can range from $10 to $180 depending on its brand and your vehicle’s make and model. Some wheel studs are very easy to replace, others are very difficult, so labor prices vary as well.

Replacing Your Vehicle’s Broken Wheel Studs

It’s important to replace damaged wheel studs to keep your vehicle’s suspension in tip-top shape. Fortunately, it’s not too difficult to find a replacement that’s compatible with your vehicle thanks to CarParts.com.

You can get your hands on new wheel studs without ever leaving your room. Simply use your mobile phone or computer to visit CarParts.com. Use our vehicle selector and input your vehicle’s details. Make sure to input the exact year, make, model, and engine.

We make sure to source our wheel studs from some of the most trusted manufacturers in the industry. On top of that, our warehouses are strategically located all over the US, meaning you can receive your order within days.

Browse our collection of high-quality auto parts at CarParts.com.
